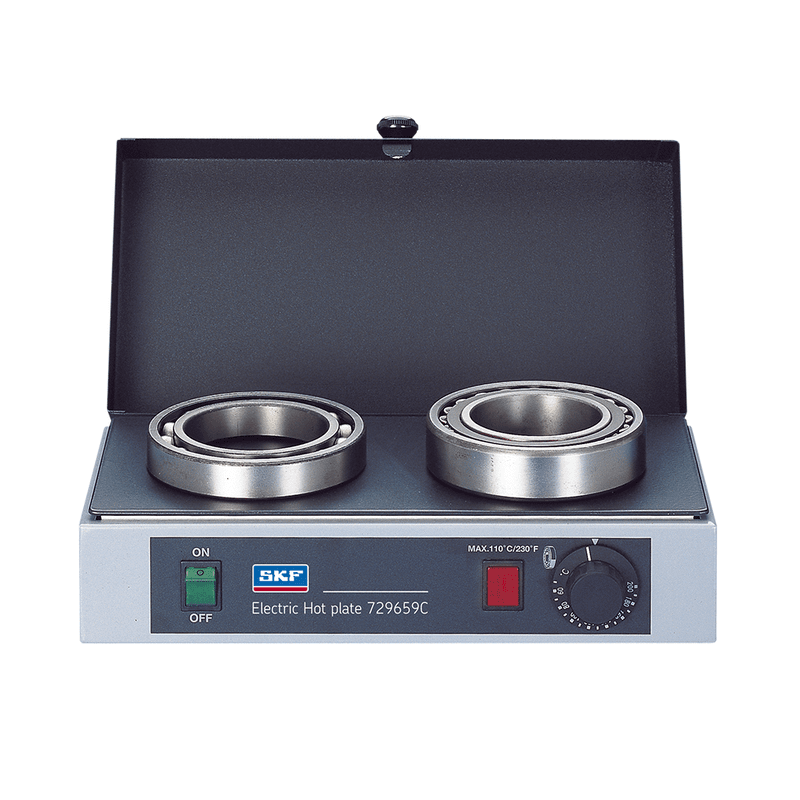

SKF Electric Hot Plate 729659 C
SKU:FEE000007
Thermostat controlled bearing heating
The SKF Electric Hot Plate 729659 C, is a professional heating device especially designed for pre-heating small bearings prior to mounting. The temperature of the plate can be adjusted at the turn of a knob to provide a temperature range of between 50 and 200 °C (120 and 390 °F).
Manufacturer : SKF
Description
- Adjustable temperature range of 50 - 200 °C (120 - 390 °F)
- Protective cover to avoid contamination during heating
| Designation | 729659 C | |
| 729659 C/110V | ||
| Voltage | 729659 C | 230V (50/60Hz) |
| 729659 C/110V | 115V (50/60Hz) | |
| Power | 1.000 W | |
| Temperature range | 50°-200°C (120°-390°F) | |
| Plate dimensions (l x w) | 380 x 178 mm (15 x 7 in.) | |
| Height of cover | 50 mm (2 in.) | |
| Overall dimensions (l x w x d) | 400 x 240 x 130 mm (16 x 10 x 5 in.) | |
| Weight | 4,7 kg (10 lb) | |
| Length of connection cable | 2 metres (6.6 ft) (earth connection required) | |
| Designation | Description | |
| 729659 C-1 | Heating plate consisting of: | |
| - Heating element | 1x | |
| - Insulation | 1x | |
| - Thermostat | 1x (incl. both knobs) | |
| - Overheating protection | 1x | |
| - Pressure plate | 1x | |
| - Basis plate | 1x | |
| - Hexagonal pins | 4x | |
| - Wiring diagrams | 1x 115 V, 1x 230 V | |
