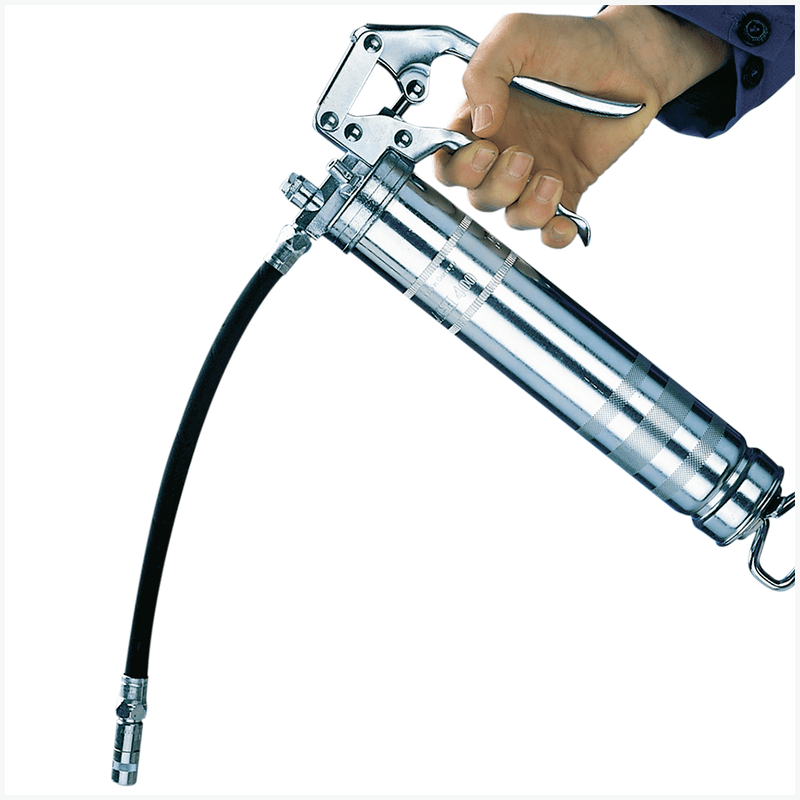

One hand operated grease gun LAGH400 SKF

SKU:GRE000016
Easy grease filling with one hand Suitable for grease filling by filler pumps/grease pumps and also suitable for grease cartridges. Ergonomic design, flexible hose and possibility to mount the hose in both vertical and horizontal position make it ease to use.
Manufacturer : SKF

Description

  • Easy to use: only one hand is needed to operate the gun
  • Refillable: grease filling nipple and de-airing valve allow filling up by filler or grease pump
  • Heavy duty: operating pressure up to 30 MPa
  • 0,8 cm³ (0.05 in³) volume/stroke
  • Flexible hydraulic type hose: can be bent, can be mounted both horizontally and vertically on the gun
TECHNICAL DATA
Designation LAGH 400
Volume/stroke approx, 0,8 cm3 (0.049 in.3)
Length 370 mm (14.6 in.)
Weight 1,5 kg (3.3 lb)
Maximum pressure

30 MPa (4 350 psi)





ACCESSORIES
Designation Description
1077601 Flexible hose



SPARE PARTS
Designation Description
1077600-1A Nozzle
1077600-3 Filling nipple
