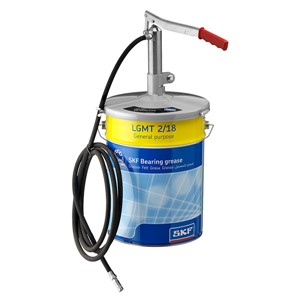

Grease pumps LAGG18M SKF
SKU:GRE000015
Meeting all your lubricating grease needs
Full range of manual and air-operated grease pumps are designed to empty standard 18, 50 or 180 kg (39, 110 or 400 lb) lubricating grease drums. Can be connected directly on the greasing points, also suitable for centralised lubricating grease systems. SKF grease pumps have a maximum pressure of 50 and 42 MPa (7 250 and 6 090 psi) respectively. Tested and approved for SKF lubricating greases. Easy to install and ready for use since pumps are supplied with all necessary items including 3 500 mm (137.8 in.) of tubing.
Manufacturer : SKF
Description
| Designation | LAGG 18M | |
| Description | Grease pump for 18 kg (39.6 lb) drums | |
| Power source | Manual | |
| Max. pressure | 500 bar (7 250 psi) | |
| Suitable drum | 265–285 mm (10.4–11.2 in.) | |
| Mobility | Stationary | |
| Maximum flow rate | 1,6 cm³/stroke (0.05 US fl. oz) | |
| Suitable grease NLGI class | 000–2 |
| Designation | Description |
| LAGT 18-50 | Trolley for 18 kg (40 lb) and 50 kg (110 lb) drums |
| LAGT 180 | Trolley for drums up to 200 kg (440 lb) |
