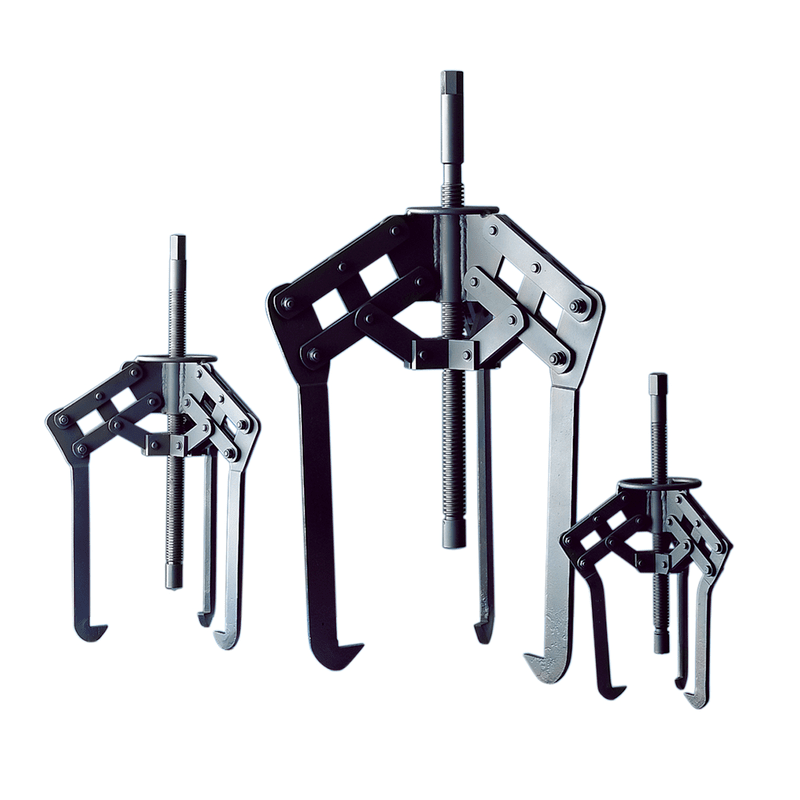

Heavy duty jaw pullers TMMP10
SKU:HEA000003
Powerful self-centring mechanical pullers
The SKF TMMP heavy duty jaw pullers provide perfect alignment and shaft protection as well as an exceptional grip for medium to large size bearings.
Manufacturer : SKF
Description
-
3 arm jaw pullers with a maximum withdrawal force of 6 to 15 tonnes (13 500 to 33 700 lbf)
-
Unique pantograph system for grip width adjustment that counteracts misalignment during operation
-
Fast, efficient and smooth handling
-
Blackened, high quality steel with optimum corrosion resistance
 |
 |
| Heavy-duty jaw puller | Pantograph system |
| Designation |
TMMP 10 |
||
| Width of grip | 100–223 mm (3.9–8.7 in.) | ||
| Effective arm length | 207 mm (8.2 in.) | ||
| Claw height | 20 mm (0.78 in.) | ||
| Maximum withdrawal force | 100 kN (11.2 US ton) | ||
| Weight | 8,5 kg (19 lb) |
| Designation |
TMMP 6 |
TMMP 10 |
||
| TMMP ..-1 | Arm | - | ||
| TMMP ..-2 | Arm | 350 mm (13.8 in.) | ||
| TMMP ..-3 | Arm | 460 mm (18.1 in.) | ||
| TMMP ..-4 | Arm | 710 mm (27.9 in.) |
| Designation |
TMMP 10 |
|||
| TMMP ..-1 | Arm | 207 mm (8.2 in.) | ||
| TMMP ..-2 | Arm | - | - | |
| TMMP ..-5 | Spindle with centre nib | |||
