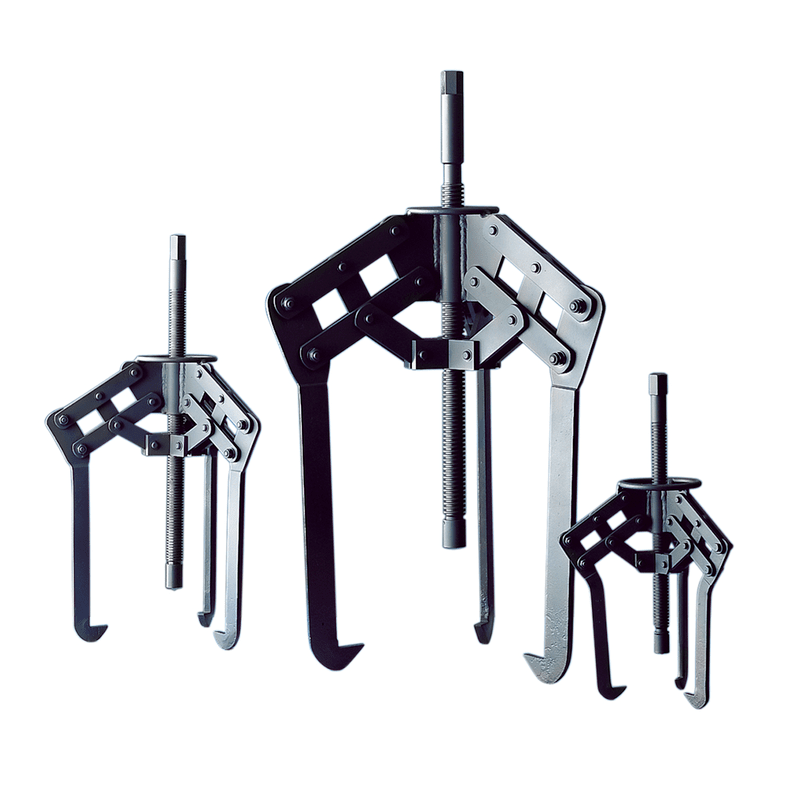

Heavy Duty Jaw Puller TMMP15

SKU:HEA000004
Powerful self-centring mechanical pullers The SKF TMMP heavy duty jaw pullers provide perfect alignment and shaft protection as well as an exceptional grip for medium to large size bearings.
Call for price
Manufacturer : SKF

Description

  • 3 arm jaw pullers with a maximum withdrawal force of 6 to 15 tonnes (13 500 to 33 700 lbf)
  • Unique pantograph system for grip width adjustment that counteracts misalignment during operation
  • Fast, efficient and smooth handling
  • Blackened, high quality steel with optimum corrosion resistance





PUL0014V_NG-TMMPHD-16x9.png PUL0016V3_NG_TMMPHD_16x9.png
Heavy-duty jaw puller Pantograph system

TECHNICAL DATA
Designation
     TMMP 15
Width of grip     140–326 mm (5.5–12.8 in.)
Effective arm length      340 mm (13.4 in.)
Claw height     30 mm (1.18 in.)
Maximum withdrawal force     150 kN (17 US ton)
Weight     21,5 kg (47.4 lb)



ACCESSORIES
Designation
   TMMP 6
 TMMP 10
 TMMP 15
TMMP ..-1 Arm     260 mm (10.2 in.)
TMMP ..-2 Arm     -
TMMP ..-3 Arm     435 mm (17.1 in.)
TMMP ..-4 Arm     685 mm (27.0 in.)



SPARE PARTS
Designation
       TMMP 15
TMMP ..-1 Arm     -
TMMP ..-2 Arm     340 mm (13.4 in.)
TMMP ..-5 Spindle with centre nib



Related documents
 Product data sheet Heavy duty TMMP series (269.0 KB)
 Instructions for use Heavy duty TMMP series (304.1 KB)
 SKF Maintenance and Lubrication products catalogue (20.5 MB)
Mounting and dismounting of SKF bearings (video)
