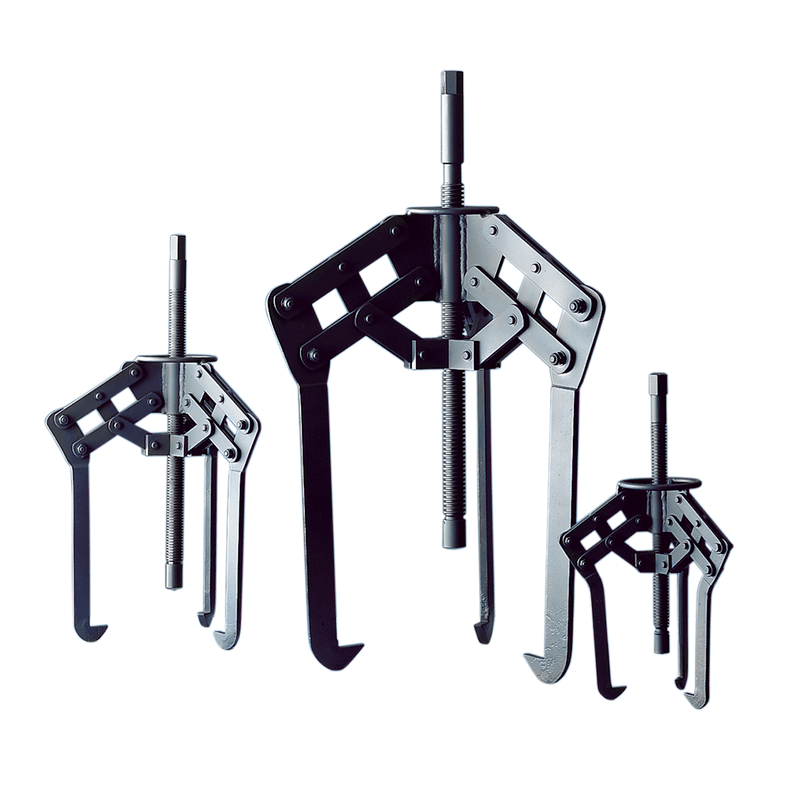

0901d196801544cf-PUL0015V_NG-TMMPHD-1x1_tcm_12-338101
0901d196801544cf-PUL0015V_NG-TMMPHD-1x1_tcm_12-338101

Heavy Duty Jaw Puller TMMP 6

SKU:HEA000002
Powerful self-centring mechanical pullers The SKF TMMP heavy duty jaw pullers provide perfect alignment and shaft protection as well as an exceptional grip for medium to large size bearings.
Call for price
Manufacturer : SKF

Description

  • 3 arm jaw pullers with a maximum withdrawal force of 6 to 15 tonnes (13 500 to 33 700 lbf)
  • Unique pantograph system for grip width adjustment that counteracts misalignment during operation
  • Fast, efficient and smooth handling
  • Blackened, high quality steel with optimum corrosion resistance

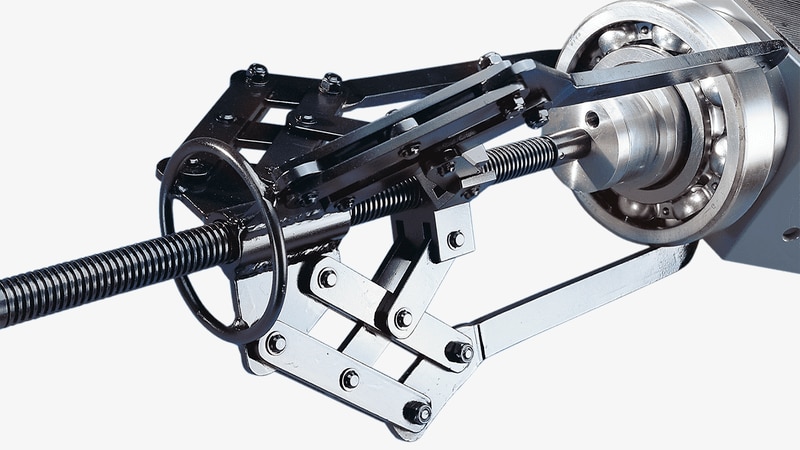

PUL0014V_NG-TMMPHD-16x9.png PUL0016V3_NG_TMMPHD_16x9.png
Heavy-duty jaw puller Pantograph system



TECHNICAL DATA
Designation
 TMMP 6

Width of grip 50–127 mm (2.0–5.0 in.)
Effective arm length  120 mm (4.7 in.)
Claw height 15 mm (0.59 in.)
Maximum withdrawal force 60 kN (6.7 US ton)
Weight 4,0 kg (8.8 lb)



ACCESSORIES
Designation
   TMMP 6

TMMP ..-1 Arm -
TMMP ..-2 Arm 220 mm (8.6 in.)
TMMP ..-3 Arm 370 mm (14.5 in.)
TMMP ..-4 Arm 470 mm (18.5 in.)



SPARE PARTS
Designation
   TMMP 6

TMMP ..-1 Arm 120 mm (4.7 in.)
TMMP ..-2 Arm -
TMMP ..-5 Spindle with centre nib



Related documents
 Product data sheet Heavy duty TMMP series (269.0 KB)
 Instructions for use Heavy duty TMMP series (304.1 KB)
 SKF Maintenance and Lubrication products catalogue (20.5 MB)
Mounting and dismounting of SKF bearings (video)
