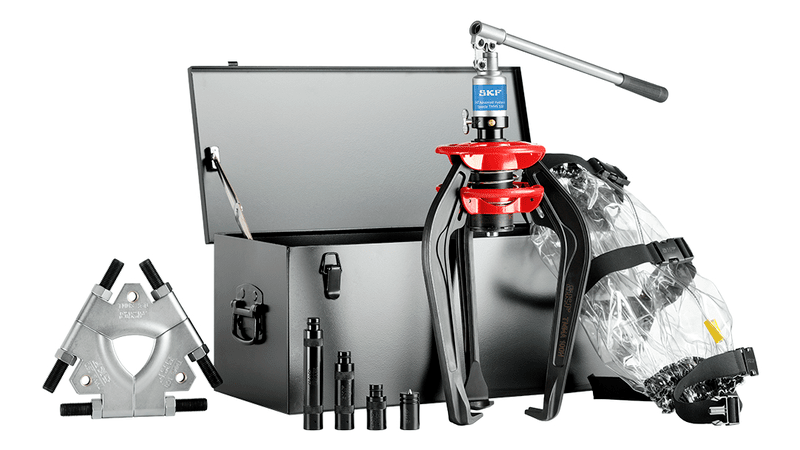

Hydraulic jaw puller sets Easy Pull TMMA100H/SET
SKU:HYD000017
A complete bearing dismounting solution
Equipped with spring-operated arms and a solid design, the SKF Easy Pull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.
Manufacturer : SKF
Description
- Each set is consisting of a hydraulically assisted SKF EasyPull together with a tri-section pulling plate, TMMS series, and a puller protection blanket facilitate an easy, safe and virtually damage-free dismounting
- Especially suitable for dismounting spherical roller and CARB toroidal roller bearings, and other components such as pulleys and flywheels
- A puller protection blanket, TMMX series, made of a strong transparent material allows the user to visually follow the dismounting procedure. While dismounting, the blanket helps to protect from flying fragments of bearings or other components, thereby enhancing user safety
- A sturdy custom-made storage case with room for all parts
| Designation | TMMA 100H/SET | |
| Puller | TMMA 100H |
|
| Tri-section pulling plate | TMMS 160 | |
| Width of grip shaft, min | 50 mm (2.0 in.) | |
| Width of grip shaft, max | 160 mm (6.3 in.) | |
| Weight | 5,9 kg (13.0 lb) | |
| Puller protection blanket | TMMX 350 | |
| Max diameter | 350 mm (14 in.) | |
| Length | 1200 mm (47 in.) | |
| Width | 580 mm (23 in.) | |
| Weight | 0,6 kg (1.4 lb) | |
| Case | TMMA 8E-1 | |
| Length | 680 mm (27 in.) | |
| Width | 320 mm (13 in.) | |
| Height | 270 mm (11 in.) | |
| Weight | 12,0 kg (26.5 lb) | |
| Total weight (packed) | 31,6 kg (70 lb) |
| Puller | Designation | Description |
| TMMA 100H/SET | TMMS 50 / TMMS 100 | Tri section pulling plates |
| Puller | Designation | Description |
| TMMA 100H/SET | TMMA 100H-1 | Arm |
| TMMA 100H/12-3 | Opening mechanism | |
| TMHS 8T | Hydraulics extension piece set | |
| TMHS 100 | Hydraulic spindle | |
| TMHS 100-1 | Hydraulic spindle, 100 kN, spindle only |
