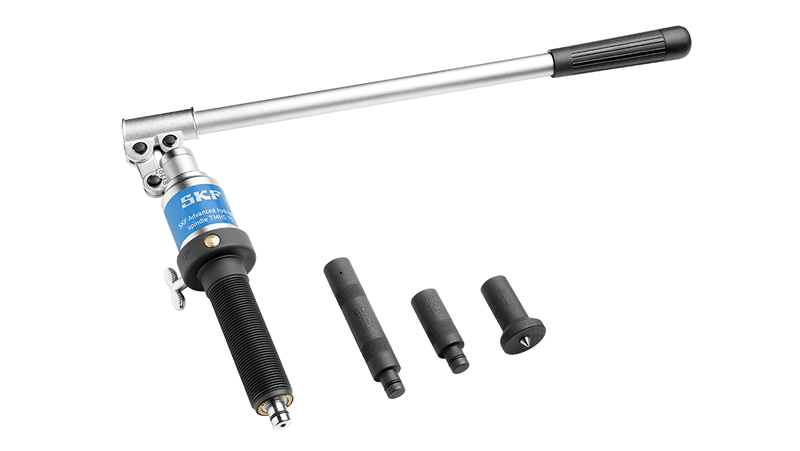

Hydraulic Spindle TMHS75
SKU:HYD000023
Effortless withdrawal force generation
The SKF advanced hydraulic spindles TMHS 75 and TMHS 100 generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump.
Manufacturer : SKF
Description
- Integrated hydraulic cylinder, pump and spindle - no separate pump is required
- Safety valve helps prevent overloading the spindle and the puller in case excessive force is applied
- Spring-loaded centre point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft centre point
- Hand lever with ergonomic grip can be rotated 360°
- Hardened and chrome plated piston with spring return function
- Extension pieces included allows easy adaptation for the required pulling length
TMHS 75
- The TMHS 75 has a maximum withdrawal force of 75 kN (8.4 ton (US)) and a long stroke length of 75 mm (3.0 in), which allows dismounting in one operation
- Suitable for use with any puller equipped with a UN 1¼" × 12 tpi threading that can be used up to the maximum force of 75 kN (8.4 ton (US))
- Delivered with a 50 (2.0 in) and 100 mm (3.9 in) extension piece
| Designation | TMHS 75 | |
| Contents | 1 × hydraulic spindle | |
| 2 × extension pieces; 50 and 100 mm (2.0 and 3.9 in.) | ||
| 1 × nosepiece | ||
| Maximum withdrawal force | 75 kN (8,4 ton US) | |
| Piston stroke | 75 mm (3.0 in.) | |
| Body thread | UN 11/4 × 12 | |
| Nose piece diameter | 35 mm (1.4 in.) | |
| Maximum reach | 229 mm (9.0 in.) | |
| Weight | 2,7 kg (6.0 lb) |
| Designation | Desciption | Suitable for |
| TMHS 5T | Set containing extension pieces 50 and 100 mm and the nosepiece | TMHS 75 |
