Plug for oil ducts & ventholes 1030816E G3/4X23mm
SKU:PLU000060
Plugs for oil ducts and vent holes.
Up to 400 MPa (58 000 psi)
SKF plugs have been designed to seal off oil connections at a maximum pressure of 400 MPa (58 000 psi).
Manufacturer : SKF
Description

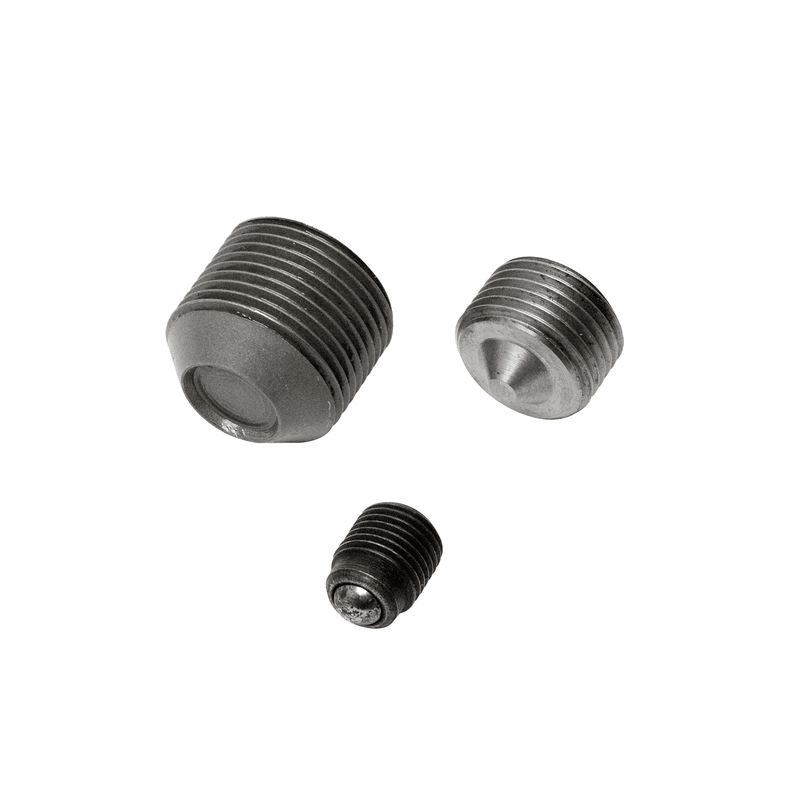

The following plugs are available:
- 233950 E with G 1/4 thread
- 729944 E with G 1/2 thread
- 1030816 E with G 3/4 thread
| Metric dimensions | ||||
| Designation | Thread | Length | Weight | Suitable hex. key |
| mm | kg | mm | ||
| 233950 E | G 1/4 | 16 | 0,02 | 6 |
| 729944 E | G 1/2 | 17 | 0,03 | 9 |
| 1030816 E | G 3/4 | 23 | 0,05 | 14 |
 |
||||
| Imperial dimensions | ||||
| Designation | Thread | Length | Weight | Suitable hex. key |
| in | lb | in | ||
| 233950 E | G 1/4 | 0.63 | 0.04 | 0.24 |
| 729944 E | G 1/2 | 0.67 | 0.07 | 0.35 |
| 1030816 E | G 3/4 | 0.90 | 0.11 | 0.55 |
