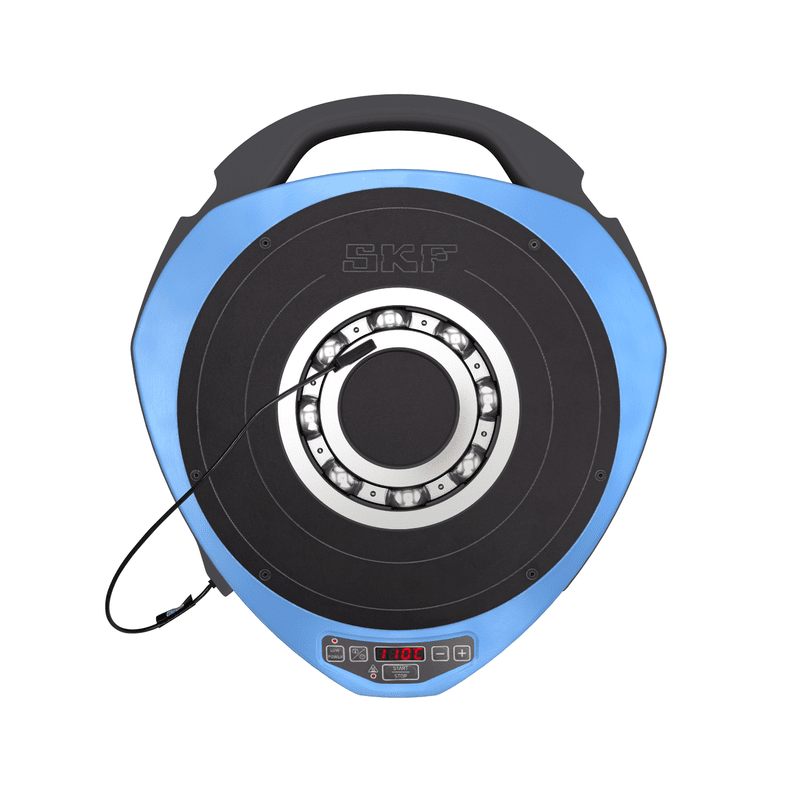

Portable Induction Heater TWIM15/230V

The TWIM 15 portable induction heater package includes:

PRODUCT FEATURES

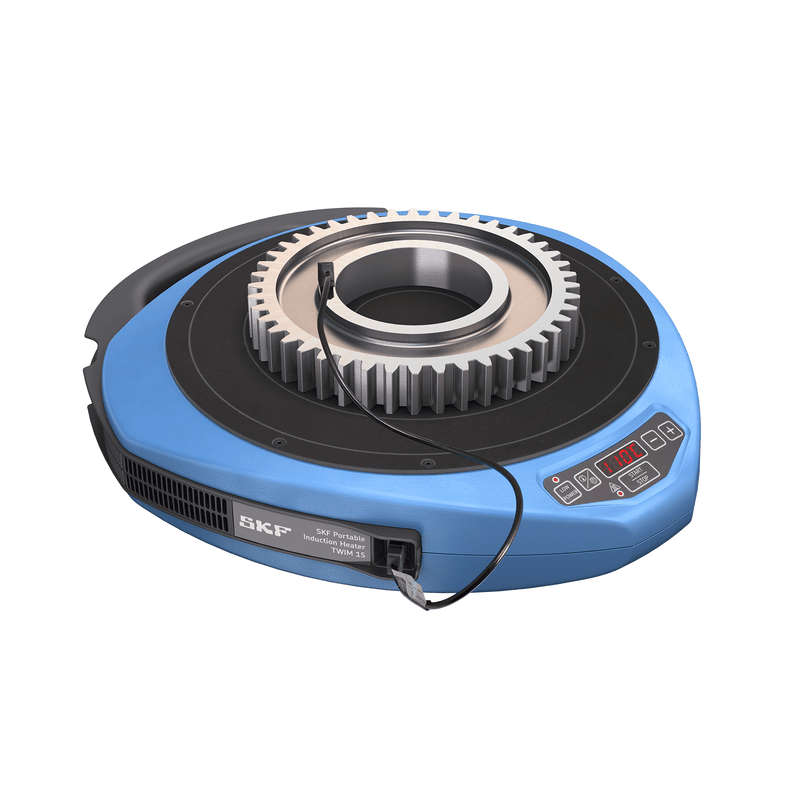

Versatile Because of the induction plate’s flat shape, a support yoke is not needed. This increases the type of components that can be heated on the plate and also reduces the number of required accessories.

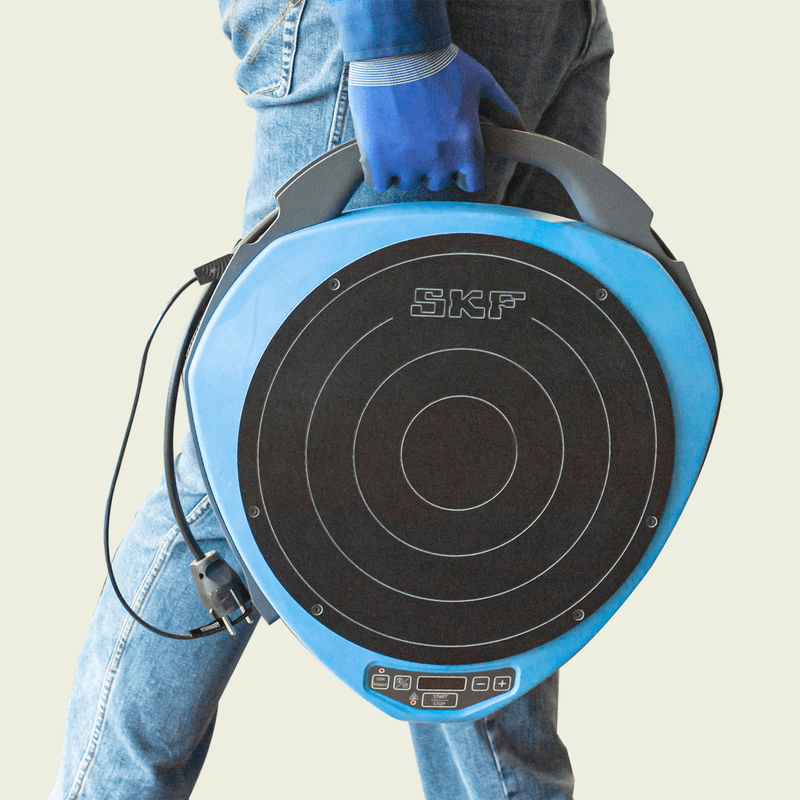

Portable Due to the medium-frequency technology used and choice of materials, the heater is lightweight. Also, the built-in handle makes it convenient to transport, and it can be stored easily.
Innovative heating Utilizing smart construction and operating software, the heater creates a low temperature difference between the inner and outer ring of the bearing. This reduces the internal tensions generated due to excessive thermal expansion of the inner ring compared to the outer ring
Power regulation Featuring different power settings, the TWIM 15 can heat sensitive components at a slower pace. Also, a non-bearing power configuration is possible where most of the power is focused on the bore of the component.
Quiet Using medium-frequency technology to heat components does not generate noise. A LED indicates when the TWIM 15 is heating, even if you cannot hear it. In parallel, a cooling fan might be heard to help the heater's electronics to stay cool.

Documents and links

TECHNICAL DATA
Designation		TWIM 15
Application ¹⁾
	Bearing weight range ²⁾	0,5 kg (1.1 lb) - 20 kg (44 lb)
	Min. bearing bore diameter	30 mm (1.18 in.)
	Max. bearing outer diameter	320 mm (12.6 in.)
	Max. bearing width	85 mm (3.35 in.)
	Performance examples (bearing, weight, temperature, time)	6320: 7,1 kg (15.7 lb), 110 °C (230 °F), 5 min 20 s
		22320 CC/W33: 12,8 kg (28.2 lb), 110 °C (230 °F), 12 min 35 s
Maximum power		TWIM 15/230 V: 2,3 kVA
		TWIM 15/110 V: 1,8 kVA
Voltage and frequency		TWIM 15/230 V: 230 V, 50/60 Hz
		TWIM 15/110 V: 110 V, 50/60 Hz
Max. current consumption		TWIM 15/230 V: 10 A
		TWIM 15/110 V: 16 A
Temperature control		20-200 °C (68-392 °F)
Demagnetization		the heater does not magnetize
Dimensions (w x d x h)		450 x 500 x 100 mm (17.7 x 19.7 x 3.9 in.)
Total weight		6,6 kg (14.6 lb)
¹⁾ SKF does not recommend heating bearings capped with seals or shields above 80 °C (175 °F). However, if higher temperatures are necessary, please contact SKF. The heater is designed for maintenance operations where some cooling in between jobs is allowed.
²⁾ Depending on the geometry of the bearing, maximum heating temperature and power availability.

ACCESSORIES
TWIM 15-BAG Carry your TWIM 15 induction heater in a convenient way The SKF TWIM 15-BAG is optional to the TWIM 15. The bag provides extra portability to the SKF TWIM 15 induction heater. It has two pockets to provide space for your heat resistant gloves, the temperature probe and the instructions for use – having the heater and all its accessories together. Like the induction heater, the TWIM 15-BAG has a compact design. The bag helps you to maintain your heater clean and protected. For example, the bag provides shelter to the heater keeping it free from dust and industrial pollution while stored. The sturdy material of which the bag is made of protects it against scratches from other tools and mishandling. Easy and safe to carry it in the trunk of a car. It also features a shoulder strap which facilitates bringing the heater into the field. You can carry it now hands free! Features: Excellent fit for the TWIM 15 Made of sturdy materials Inner pockets for accessory storage Shoulder strap for easy carrying Compact design Designation: TWIM 15-BAG

SPARE PARTS
Designation	Description
TWIM 15-3	Magnetic K-type probe 400mm (1.31 ft)
