Reversible Jaw Puller TMMR 8XL/SET
Description
- An essential and versatile tool for every workshop allows for external and internal pulling applications
- Self-locking arms for easy adjustment of width of grip
- Hexagonal head on beam enables rotation of puller and bearing during dismounting, improving ease of use
- Wide gripping range from 23 mm (0.9 in.) internal to 350 mm (13.8 in.) external, enables many bearings and components to be dismounted
- Unlike many similar pullers, the pullers can be used up to their full rated load capacity without permanently deforming the puller arms
- Arms and beam are zinc passivated for enhanced corrosion resistance and easy cleaning
- The extra long arm extension pieces, designed to be easy to fit and remove, can be used to further increase the effective arm length. Using extension pieces does not compromise the overall puller strength
- The SKF Reversible Jaw Pullers can also be supplied in three different sets, complete with a workshop stand
Features and benefits
|
External pull |
 |
Internal pull |
 |
|

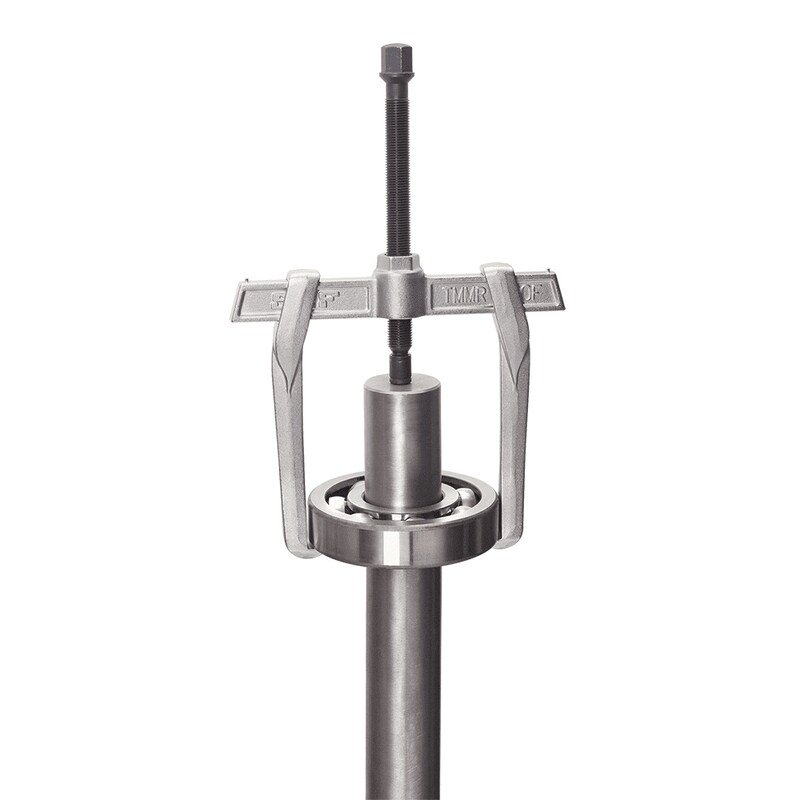

Reversible jaw puller TMMR.. F series |
 |

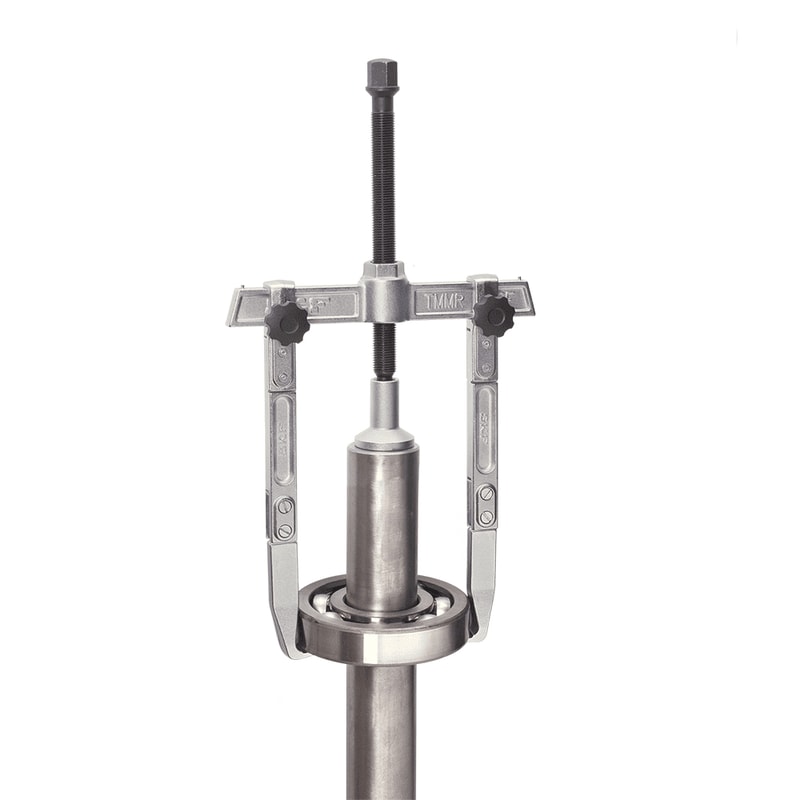

Reversible jaw puller TMMR.. XL series |
 |
|

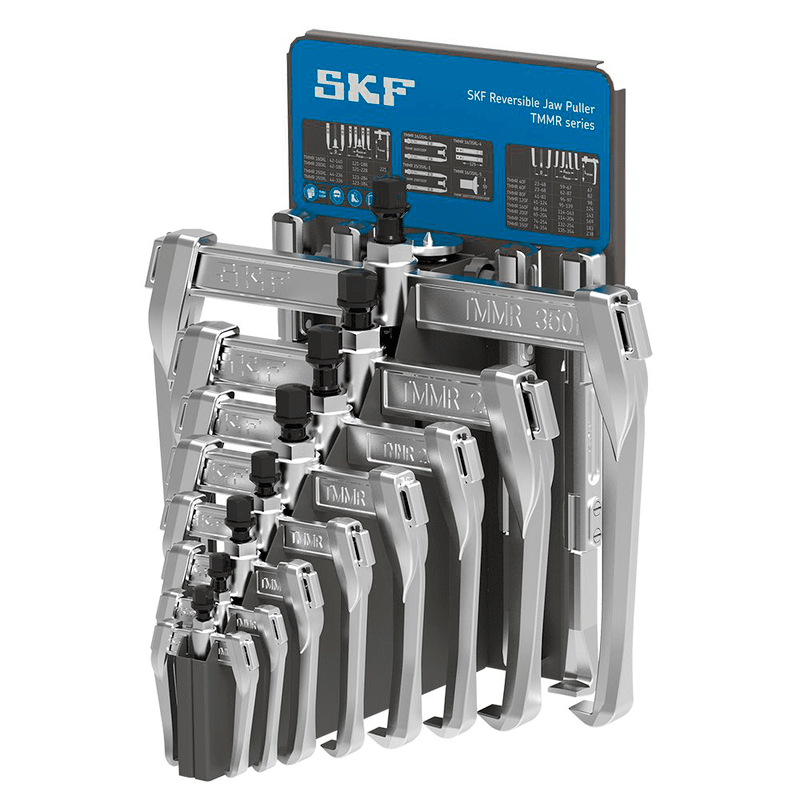

Complete sets with pullers on a puller stand are also available |
 |

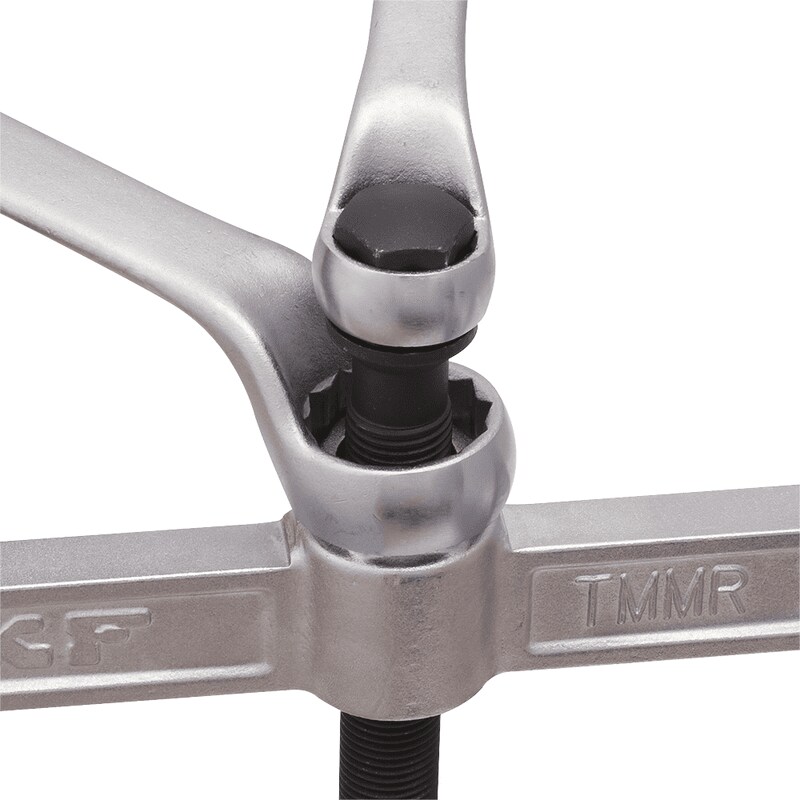

Hexagonal head on beam enables rotation of puller and bearing during dismounting, improving ease of use |
 |
|

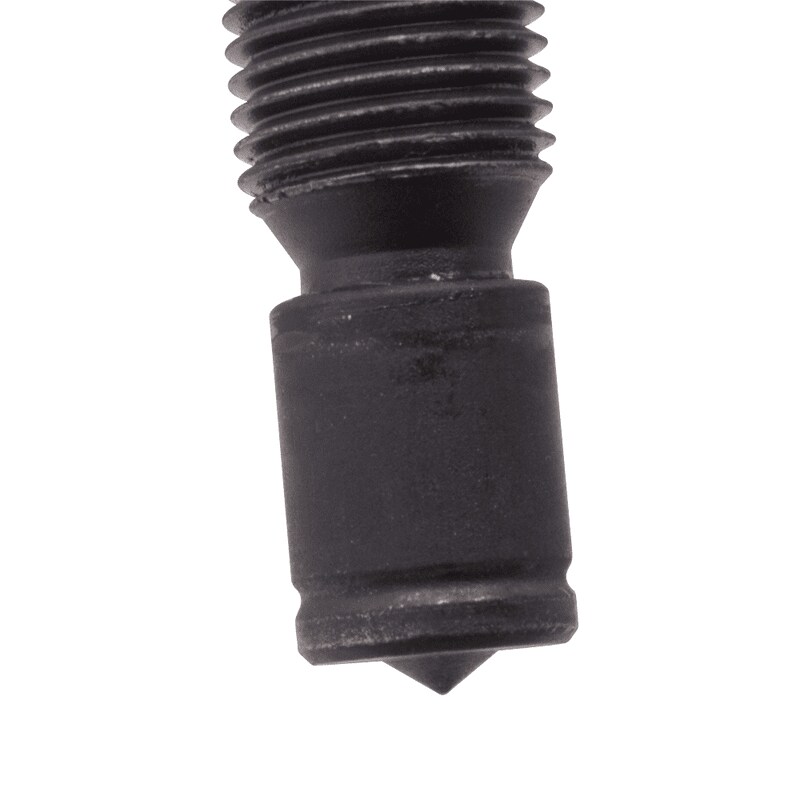

Unlike many similar pullers, the spindle tip cone rotates. This:
|
 |

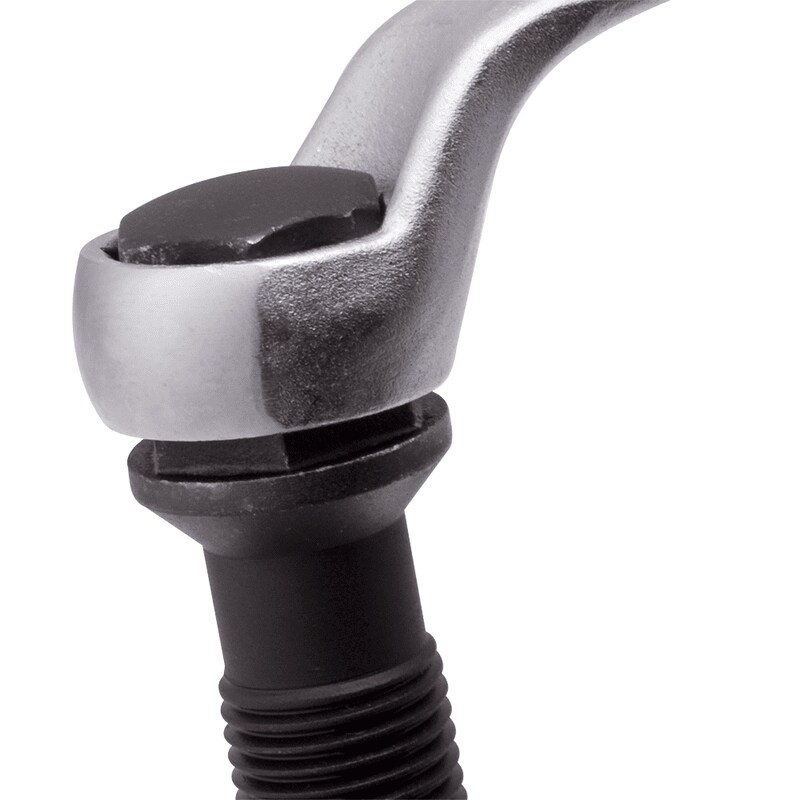

Hexagonal head on spindle with a flange, helps prevent the spanner from slipping during operation |
 |
|

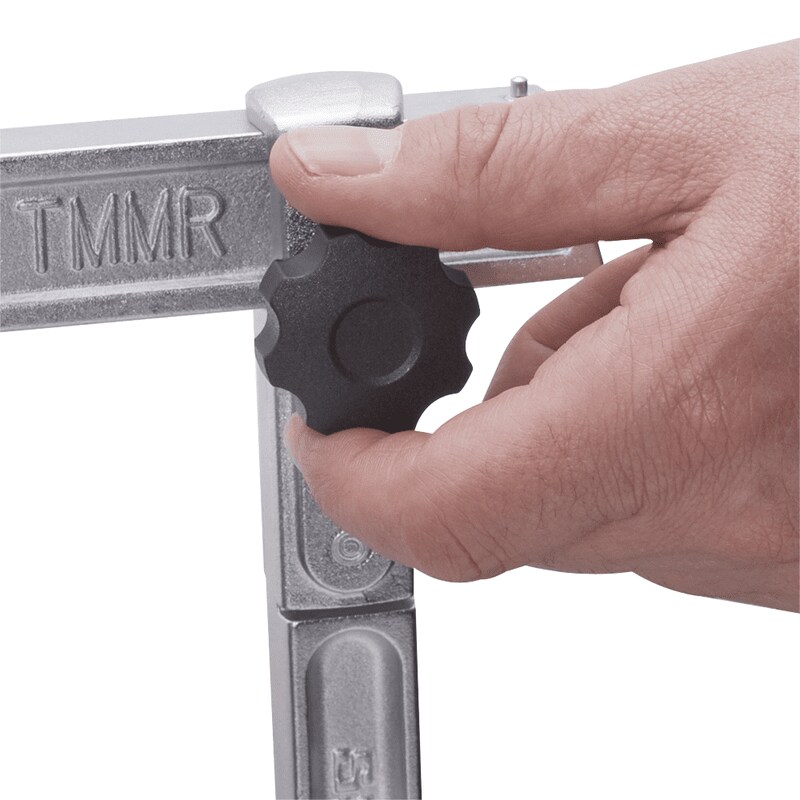

Extra long arm pullers have fixing screws to aid the initial positioning of the arms. When a pulling effort is applied, a self locking feature secures the arm position on the beam. |
 |

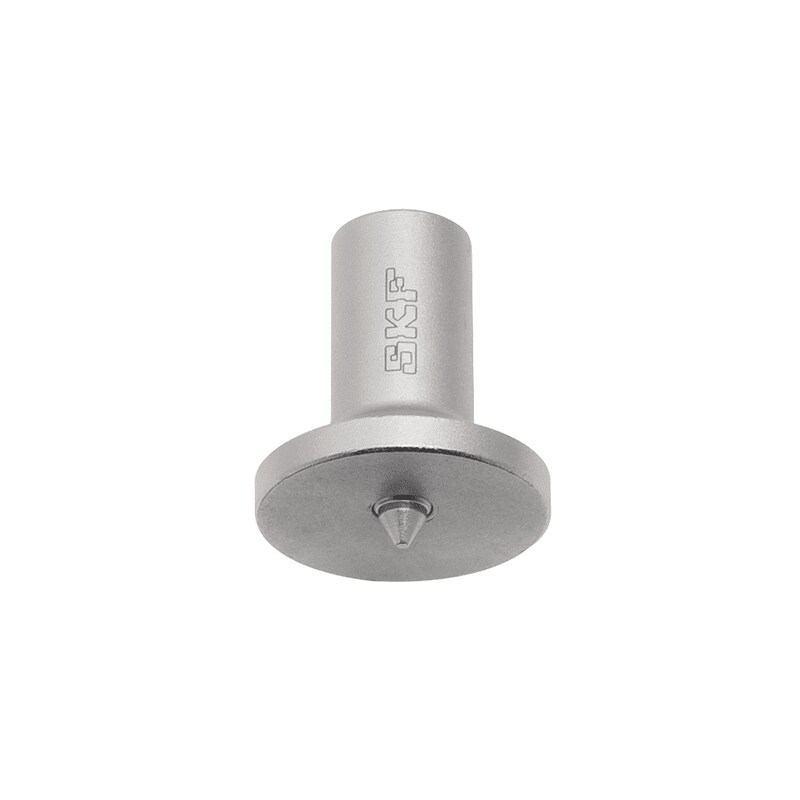

A unique retractable spring-loaded nose piece is supplied with the extra long arm pullers, which enhances the overall puller stability and safety. |
 |
| Designation | TMMR 8XL/SET | ||
| Puller TMMR 40F | • | ||
| Puller TMMR 60F | • | ||
| Puller TMMR 80F | • | ||
| Puller TMMR 120F | • | ||
| Puller TMMR 160F | • | ||
| Puller TMMR 200F | • | ||
| Puller TMMR 250F | • | ||
| Puller TMMR 350F | – | • | |
| Extra long arm set TMMR 16/20XL-1 | – | • | |
| Extra long arm set TMMR 25/35XL-1 | – | • | |
| Spring loaded nose piece TMMR 16/35XL-5 | – | – | |
| Grease for spindle LGEV 2/0.035 | • | • | |
| Total weight | 11,5 kg (25.4 lb) | 20,4 kg (45.0 lb) | 25,3 kg (55.8 lb) |
