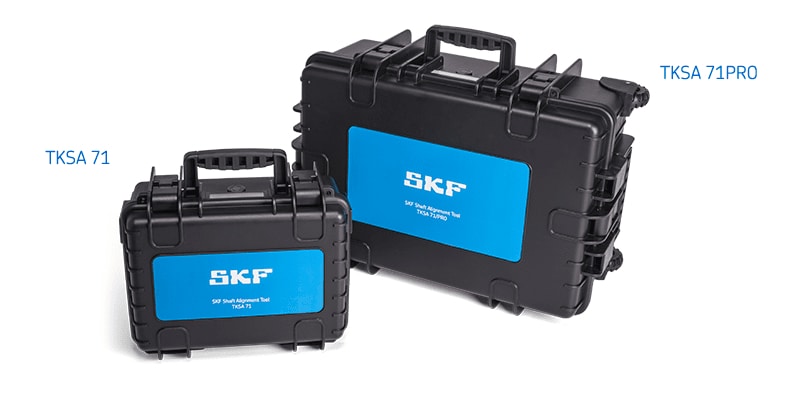

The TKSA 71 base model includes standard accessories for most alignment tasks. It is supplied in a rugged case that meets most airline requirements for cabin luggage.

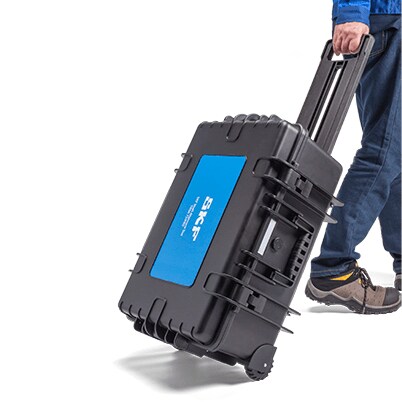

The TKSA 71/PRO model includes additional accessories such as sliding brackets, magnetic bases and offset brackets that are useful for more demanding alignment jobs. This model is supplied in a larger, rugged trolley case.

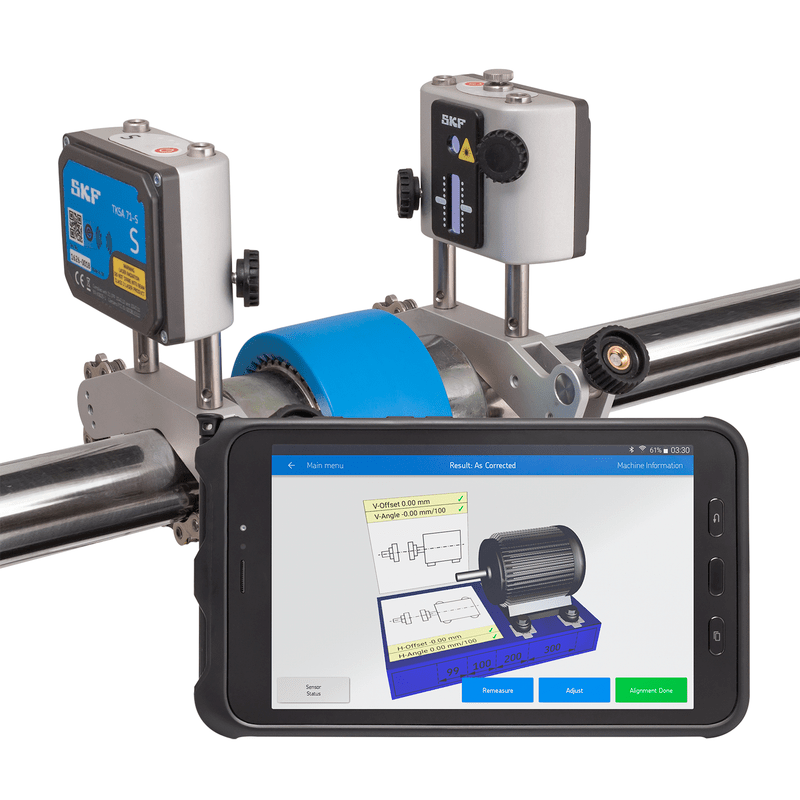

Measuring device: Measuring units (M & S) with standard V-bracket (1), Wireless charging pods with USB cable (2), Tape measure (3)
Standard accessories: Extension chains (4), Extension rods (5), Mounting magnets (6)
Advanced accessories: Sliding brackets (7), Offset brackets (8), Additional extension rods (9), Magnetic bases (10)
| Designation | Description |
| TKSA 71 | Measuring units with wireless charging pod |
| Carrying case meets most airlines’ carry-on requirements | |
| Standard accessories | |
| TKSA 71/PRO | Measuring units with wireless charging pods |
| Trolley case with additional storage space | |
| Standard and advanced accessories |
| 2 x TKSA 71 measuring units (M & S) |
| 2 x Standard V-brackets with chains 480 mm (18.9 in.), rods 80 mm (3.1 in.) and magnets |
| 2 x Extensions chains 1m (3.3 ft.) |
| 1 x USB to Micro USB split charging cable |
| 2 x Wireless charging pads |
| 1 x Measuring tape 5 m (16.4 ft.) |
| 1 x Printed certificate of calibration and conformance |
| 1 x Printed quick start guide (English) |
| 4 x Extension rods 120 mm (4.7 in.) |
| 1 x Rugged carrying case (IP67), 365 x 295 x 170 mm (14.4 x 11.6 x 6.7 in.) |
| 2 x TKSA 71 measuring units (M & S) |
| 2 x Standard V-brackets with chains 480 mm (18.9 in.), rods 80 mm (3.1 in.) and magnets |
| 2 x Extensions chains 1m (3.3 ft.) |
| 1 x USB to Micro USB split charging cable |
| 2 x Wireless charging pads |
| 1 x Measuring tape 5 m (16.4 ft.) |
| 1 x Printed certificate of calibration and conformance |
| 1 x Printed quick start guide (English) |
| 8 x Extension rods 120 mm (4.7 in.) |
| 2 x Magnetic bases (TKSA MAGBASE) |
| 2 x Sliding brackets (TKSA 51-SLDBK) |
| 2 x Offset brackets 50 mm (2 in.) |
| 1 x Large, rugged trolley case (IP67), 610 x 430 x 265 mm (24 x 16.9 x 10.4 in.) |
 |
 |
| Designations | TKSA 71 |
| TKSA 71/PRO | |
| Sensors and communication | 20 mm (0.8 in) 2nd gen. PSD with line laser Class 2 |
| inclinometer ±0.1°; Bluetooth 4.0 LE | |
| System measuring distance | 0,04 to 10 m (0.13 to 32.8 ft) |
| Measuring errors | <1% ±10 µm |
| Housing material | Anodized aluminum front and PC/ABS plastic back cover |
| Operating time | Up to 8 hours, rechargeable Li-ion battery, wireless fast charging, 10 min. charging for 1h usage |
| Dimensions | 52 × 64 × 33 mm (2.1 × 2.5 × 1.3 in.) |
| Weight | 130 g (0.3 lbs) |
| Operating device | Samsung Galaxy Tab Active 2 and iPad Mini recommended |
| iPad, iPod Touch | |
| iPhone SE, Galaxy S6 or above (all not included) | |
| Software/App update | Apple AppStore or on Google Play store |
| Operating system requirements | Apple iOS 9 or Android OS 4.4.2 (and above) |
| Alignment method | Alignment of horizontal and vertical shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 40° rotation), soft foot, machine trains, values, spacer shafts |
| Live correction values | Vertical and horizontal |
| Extra features | Machine library, QR code reading, target values, disturbance compensation, 3D machine free view, screen rotation on tablets, automatic .pdf report |
| Fixture | 2 × V-brackets with chains, width 15 mm (0.6 in.) |
| Shaft diameters | 20 to 150 mm diameter (0.8 to 5.9 in.), |
| 450 mm (17.7 in.) with extension chains (included) | |
| Max. coupling height 1) | 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods |
| Power adapter | Wireless charging via supplied charging pods |
| micro USB to USB split charging cable supplied | |
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| IP rating | IP67 for measuring units and carrying case |
| Carrying case dimensions | TKSA 71 carrying case: 365 × 295 × 170 mm (14.4 × 11.6 × 6.7 in.) |
| TKSA 71/PRO trolley case: 610 × 430 × 265 mm (24 × 16.9 × 10.4 in.) | |
| Total weight (incl. case) | TKSA 71: 3,9 kg (8.6 lb) |
| TKSA 71/PRO: 12,5 kg (27.6 lb) | |
| Calibration certificate | Supplied with 2 years validity |
| Case content | 2 measuring units (M&S) |
| 2 shaft brackets with chains 480 mm (18.9 in.), threaded rods 80 mm (3.1 in.) and magnets; 4 threaded extension rods 120 mm (4.7 in.) | |
| 2 extension chains 980 mm (38.6 in.) | |
| Micro USB to USB split charging cable | |
| Measuring tape | |
| Printed certificate of calibration and conformance | |
| Quick start guide (EN) | |
| 2x A5 sheets with 6x QR code stickers per sheet (total of 12x stickers) | |
| Industrial rugged case (IP 67) | |
| Additionally with TKSA 71/PRO: | 4 threaded extension rods 120 mm (4.7 in.) |
| 2 offset brackets 50 mm (2 in.) | |
| 2 sliding brackets | |
| 2 magnetic bases | |
| * Depending on the coupling, the brackets can be mounted on the coupling, reducing the coupling height limitation. | |
| Designation | Description |
| TKSA 71-M | 1x Measuring unit for "M" movable side (including calibration certificate) |
| TKAS 71-S | 1x Measuring unit for "S" stationary side (including calibration certificate) |
| TKSA 71-WPODS | 2x Wireless charging pods incl. split USB cable for TKSA 71 and 71/PRO |
| TKSA 51-VBK | 1 × Standard V-bracket, supplied with 2x threaded rods of 80 mm (3.2 in.), 1x standard chain of 480 mm (18.9 in.) and 4 × magnets |
| TKSA 51-EXTCH | 2 × Extension chains of 1 m (3.3 ft.) for shaft diameters up to 450 mm (17.7 in.) |
| TKSA 51-ROD80 | 4 × threaded rods of 80 mm (3.1 in.) |
| TKSA 51-ROD120 | 4 × threaded rods of 120 mm (4.7 in.) |
