Shaft alignment tool TKSA 11

SKU:SHA000006
New technology makes shaft alignment easier and more affordable The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
Call for price
Manufacturer : SKF

Description

  • Live view of the instrument and motor position makes the measurement and horizontal alignment intuitive and easy
  • The TKSA 11 app offers a fully functional demonstration mode allowing the complete alignment process to be experienced without the need to purchase the TKSA 11
  • The TKSA 11 is designed to give a fast return on its investment and is also affordable for almost every budget
  • Mobile devices allow high resolution graphics, intuitive usage, automatic software updates and display unit choice
  • By using inductive proximity sensors, the measurement is no longer affected by bright sunlight, the influence of backlash is reduced and the instrument becomes more robust. All enabling the TKSA 11 to deliver accurate and reliable shaft alignments
  • Automatic alignment reports give a complete overview of the alignment process and results. Reports can easily be shared via email or cloud services
  • The TKSA 11 is supplied in a sturdy SKF carrying case
  • Extensive range of accessories is available.

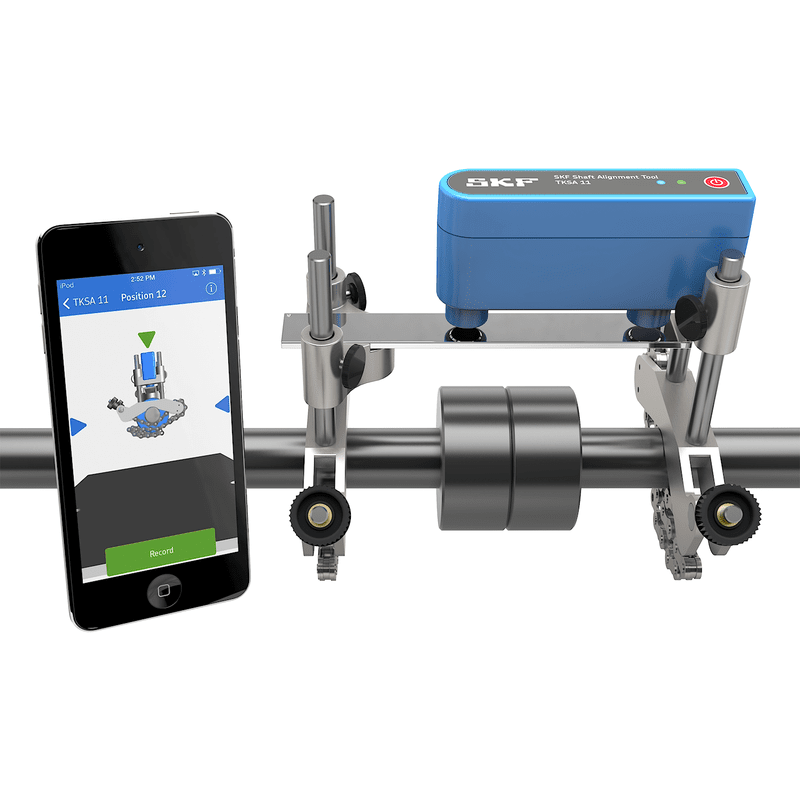

                                                                        TKSA 11                                                                                                                                                  applicationTKSA 11 in carrying case

TECHNICAL DATA
Designation TKSA 11
Sensors and communication 2× Inductive proximity sensors
Inclinometer ±0.5°
Bluetooth 4.0 LE
System measuring distance 0 to 185 mm (0 to 7.3 in.) between brackets
3 × reference bars included up to 200 mm (7.9 in.)
Measuring errors <2%
Housing material PC/ABS plastic
Operating time Up to 18 hours, rechargeable LiPo battery
Dimensions 105 × 55 × 55 mm (4.1 × 2.2 × 2.2 in.)
Weight 155 g (0.34 lb)
Operating device Samsung Galaxy Tab Active 2 and iPad Mini recommended
iPad, iPod Touch
iPhone SE, Galaxy S6 or above (all not included)
Software/App update Apple AppStore or on Google Play Store
Operating system requirements Apple iOS 9 or Android OS 4.4.2 (and above)
Alignment method Alignment of horizontal shafts
3 position measurement 9–12–3
Live correction values Only for horizontal
Extra features Automatic .pdf report
Fixture 2× V-brackets with chains, width 15 mm (0.6 in.)
Shaft diameters 20 to 160 mm (0.8 to 6.3 in.)
Max. coupling height * 55 mm (2.2 in.) with standard 80 mm rods (Unit should be mounted on the coupling when possible)
Power adapter Charging via micro USB port (5V)
Micro USB to USB charging cable supplied
Compatible with 5V USB chargers (not included)
Operating temperature 0 to 45 °C (32 to 113 °F)
IP rating IP 54
Carrying case dimensions 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
Total weight (incl. case) 2,1 kg (4.6 lb)
Calibration certificate Supplied with 2 years validity
Case content Measuring unit;
3 reference bars
2 shaft brackets with chains 480 mm (18.9 in.) and rods 80 mm (3.1 in.)
Micro USB to USB charging cable
Measuring tape 2 m (6.6 ft.)
Printed certificate of calibration and conformance
Printed quick start guide (EN)
SKF carrying case
* Depending on the coupling, the brackets can be mounted on the coupling, reducing the coupling height limitation.



SPARE PARTS
Designation Description
TKSA 11-MBH 1x Magnetic bar holder
TKSA 11-RB 1x Reference bars set (100 mm, 150 mm, 200 mm)
TKSA 11-VBK 1x Standard chain bracket including 80 mm rods and 1x standard chain 480 mm
TDTC 1/B Toolcase without inlay
