Battery driven grease gun TLGB 20

SKU:SKF000005
Integrated grease meter delivers precise lubrication Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication. This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life. The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates – low and high – and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10,000 psi) and features a built-in light to illuminate the work area.
Call for price
Manufacturer : SKF

Description

  • Integrated grease meter tracks dispensed grease
  • Battery charge display indicates lithium battery charge level
  • Three-point stand keeps grease gun upright for easy handling
  • LED light illuminates work area to help locate grease fittings in dimly lit environments
  • Two-speed flow rate enables adjustment from low-volume to high-volume flow to suit the application
  • Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output
  • Filler nipple facilitates clean and simple filling from drums using filler pumps
  • Vent valve removes trapped air inside grease gun for trouble-free priming
  • Spring guards preserve flex hose life by preventing kinks
  • Lightweight, ergonomic design with optimized balance for operator comfort
  • Supplied in sturdy carrying case with 900mm (36-inch) high-pressure hose, rechargeable 20-volt battery and 90-minute charger

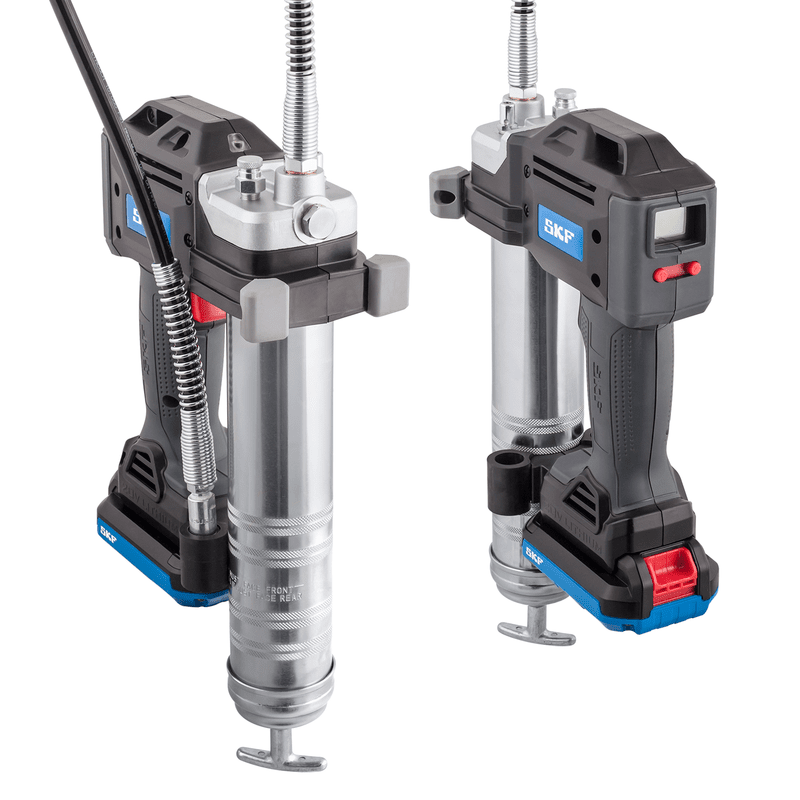

SKF Battery driven grease gun TLGB 20.
LUB0515V_NG-TLGB20-LAGF-1x1.png LUB0510V_NG.png
Filler nipple facilitates clean and simple filling from drums using filler pumps TLGB 20 application



PRODUCT DETAILS
  1. LED light
  2. Spring guards
  3. Filler nipple
  4. Vent valve
  5. Multi-function LCD
  6. Ergonomic design
  7. 4-Jaw coupler
  8. 20V Lithium-ion battery

TECHNICAL DATA
Designation TLGB 20 and TLGB 20/110V
Display Grease meter
Battery capacity gauge
Alert of blocked fittings
Alert of loss of prime
Grease output
- Low speed setting 100 ml/min. (3.5 oz/min.) at 70 bar pressure
- High speed setting 160 ml/min. (5.5 oz/min.) at 70 bar pressure
Maximum operating pressure 400 bar (6 000 psi)
Maximum peak pressure 700 bar (10 000 psi)
Cartridges per battery charge 15 cartridges (free flow, low speed)
5 cartridges (200 bar counter pressure, low speed)
Length of hose 900 mm (36 in.)
Battery type Li-Ion
Battery output 20V DC maximum (without workload)
Battery capacity 1 500 mAh
Voltage charger, V/Hz
- TLGB 20 200–240 V/50–60 Hz
- TLGB 20/110V 110–120 V/60 Hz
Carrying case dimensions 590 × 110 × 370 mm (23.2 × 4.3 × 14.5 in.)
Weight 3,0 kg (6.5 lb)
Total weight (incl.case) 5,7 kg (12.7 lb)



ACCESSORIES
Designation Description
TLGB 20-1 Shoulder strap
TLGB 20-2 20V Li-Ion battery
TLGB 20-7 Plug adapter for wall outlets in Australia, New Zealand and Argentina. (AS NZS 3112-2004 )



SPARE PARTS
Designation Description
TLGB 20-3  High pressure hose 900 mm (36in) with coupler for battery driven grease gun
TLGB 20-4
 Grease tube assembly for battery driven grease gun
TLGB 20-5 Charger 220-240V for battery driven grease gun
TLGB 20-6 Charger 110V for battery driven grease gun



Related documents
 Product data sheet TLGB 20 (734.6 KB)
 Instructions for use TLGB 20 (21.9 MB)
