Standard Jaw Puller TMMP3x185
SKU:STA000004
Versatile two and three arm mechanical pullers
One of the easiest and most effective ways to dismount small to medium size bearings is to use a mechanical puller. Using an SKF jaw puller helps ensure that no damage is caused to the bearing or to the bearing seating during dismounting. SKF standard jaw pullers offer you easy and safe jaw puller operation.
Manufacturer : SKF
Description

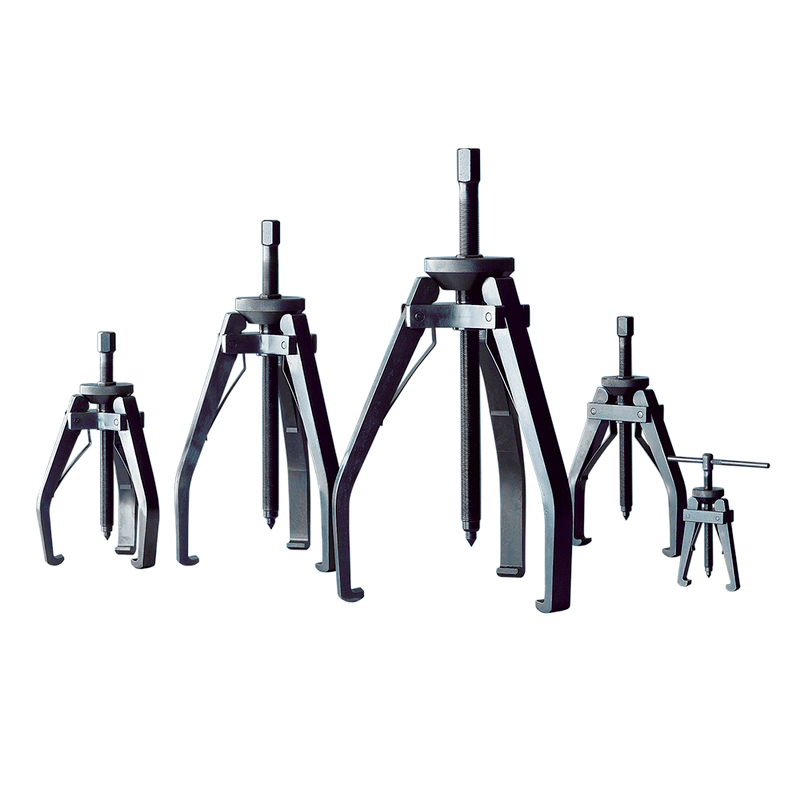

- Range of five different jaw pullers with two or three arms
- Maximum nominal span from 65 to 300 mm (2.6 to 11.8 in.)
- Cone system for automatic centring and secure positioning of arms
- Strong springs to keep arms apart for easy operation
- Hardened, high quality carbon steel
| Designation |
No. of arms |
Width of grip |
Effective arm length |
Max. withdrawal force |
Weight |
| kg | |||||
| TMMP 3x185 | 3 | 185 | 135 | 24,0 | 2,5 |
| Designation | Description |
| TMMP 3X185-6 | Spindle for TMMP 3x185 |
