Plummer Block SNU510-608 RHP UK

SKU:PLU000004

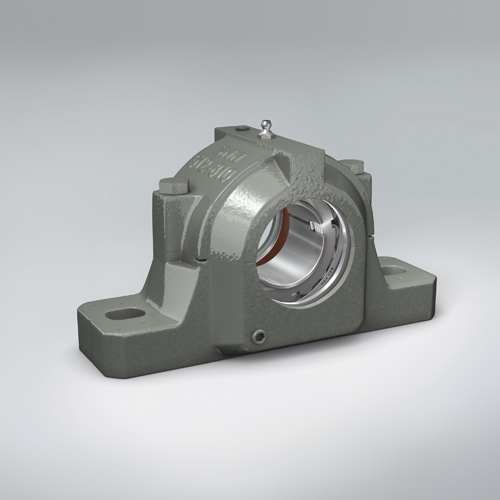

Split Plummer block housing for bearings with adapter sleeve for 45mm shaft Budget Brand split Plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
Manufacturer : NSK

Description

Shaft Diameter: 45mm

Plummer Block Housing Dimensions
D: 90mm
B: 205mm
b: 60mm
G: 25mm
F: 41mm
A: 60mm
L: 90mm
H: 112mm
E: 170mm
d2: 62.0mm
d3: 70.5mm
f: 5mm
S: M12
t: M10

Weight: 2.9kg

SNU510-608 Budget Brand Split Plummer Block Housing for 45mm Shaft image 2
