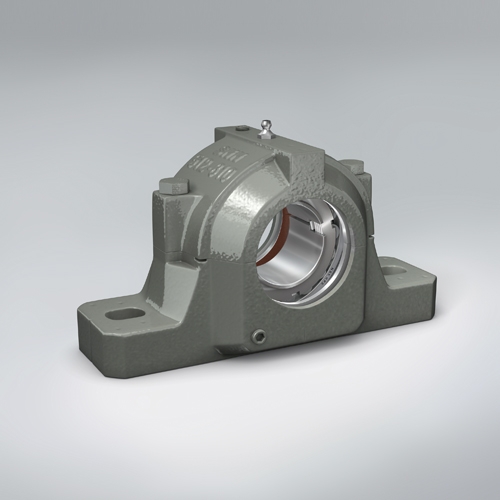

Plummer Block SNU511-609 RHP UK

SKU:PLB000050
Split Plummer block housing for bearings with adapter sleeve for 50mm shaft Budget Brand split Plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
Manufacturer : NSK

Description

Shaft Diameter: 50mm

Plummer Block Housing Dimensions
D: 100mm
B: 255mm
b: 70mm
G: 28mm
F: 44mm
A: 70mm
L: 95mm
H: 126mm
E: 210mm
d2: 67.0mm
d3: 75.5mm
f: 5mm
S: M16
t: M12

Weight: 4.5kg

SNU511-609 Budget Brand Split Plummer Block Housing for 50mm Shaft image 2
