Plummer Block SNU512-610 RHP UK

SKU:PLB000001
Split Plummer block housing for bearings with adapter sleeve for 55mm shaft Budget Brand split Plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
Manufacturer : NSK

Description

Shaft Diameter: 55mm

Plummer Block Housing Dimensions
D: 110mm
B: 255mm
b: 70mm
G: 30mm
F: 48mm
A: 70mm
L: 105mm
H: 132mm
E: 210mm
d2: 72.0mm
d3: 80.5mm
f: 5mm
S: M16
t: M12

Weight: 5.0kg

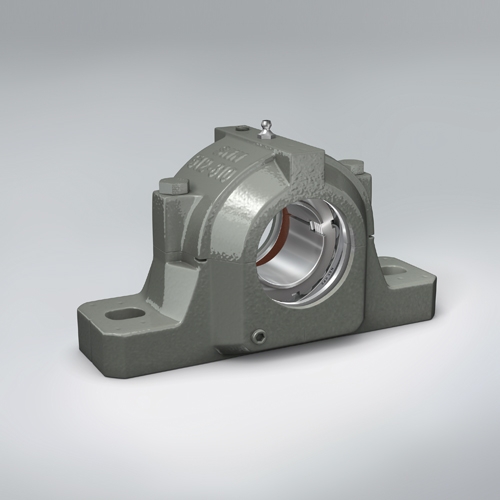

SNU512-610 Budget Brand Split Plummer Block Housing for 55mm Shaft image 2
