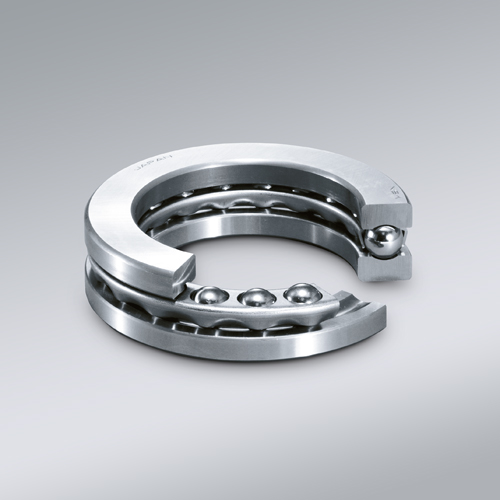

Thrust ball bearings, single direction 51105
SKU:BEA000771
Thrust ball bearings, single direction 51105
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
42 mm
|
|
| H |
11 mm
|
|
| d1 |
≈ 42 mm
|
|
| D1 |
≈ 26 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 35 mm
|
|
|---|---|---|
| Da |
max. 32 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
18.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
39 kN
|
| Fatigue load limit | Pu |
1.43 kN
|
| Reference speed |
6 300 r/min
|
|
| Limiting speed |
9 000 r/min
|
|
| Minimum load factor | A |
0.008
|
MASS
| Mass bearing (including seat washer where applicable) |
0.056 kg
|
|---|
