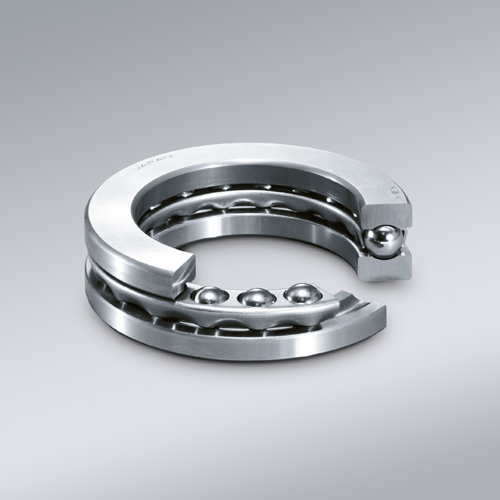

Thrust ball bearings, single direction 51114
SKU:BRG000091
Thrust ball bearings, single direction 51114
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
70 mm
|
|
|---|---|---|
| D |
95 mm
|
|
| H |
18 mm
|
|
| d1 |
≈ 95 mm
|
|
| D1 |
≈ 72 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 85 mm
|
|
|---|---|---|
| Da |
max. 80 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
40.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
120 kN
|
| Fatigue load limit | Pu |
4.4 kN
|
| Reference speed |
3 400 r/min
|
|
| Limiting speed |
4 500 r/min
|
|
| Minimum load factor | A |
0.074
|
MASS
| Mass bearing (including seat washer where applicable) |
0.35 kg
|
|---|
