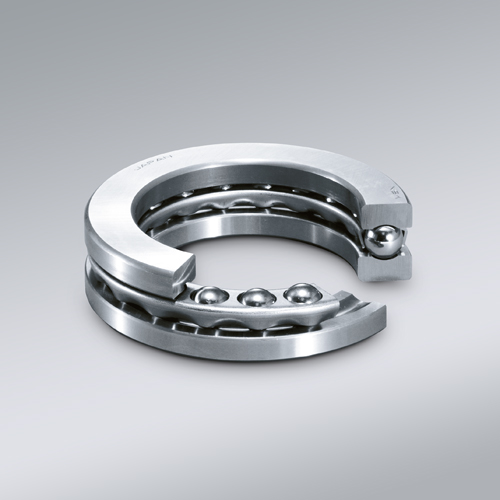

Thrust ball bearings, single direction 51316
SKU:TBB000001
Thrust ball bearings, single direction 51316
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
80 mm
|
|
|---|---|---|
| D |
140 mm
|
|
| H |
44 mm
|
|
| d1 |
≈ 140 mm
|
|
| D1 |
≈ 82 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 116 mm
|
|
|---|---|---|
| Da |
max. 104 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
159 kN
|
|---|---|---|
| Basic static load rating | C0 |
390 kN
|
| Fatigue load limit | Pu |
13.7 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Minimum load factor | A |
0.79
|
MASS
| Mass bearing (including seat washer where applicable) |
2.7 kg
|
|---|
