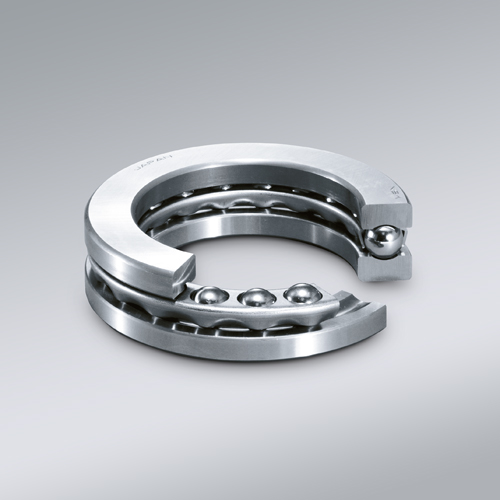

Thrust ball bearings, single direction 51132
SKU:BEA000145
Thrust ball bearings, single direction 51132
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
160 mm
|
|
|---|---|---|
| D |
200 mm
|
|
| H |
31 mm
|
|
| d1 |
≈ 198 mm
|
|
| D1 |
≈ 162 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 184 mm
|
|
|---|---|---|
| Da |
max. 176 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
112 kN
|
|---|---|---|
| Basic static load rating | C0 |
465 kN
|
| Fatigue load limit | Pu |
12.9 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Minimum load factor | A |
1.1
|
MASS
| Mass bearing (including seat washer where applicable) |
2.35 kg
|
|---|
