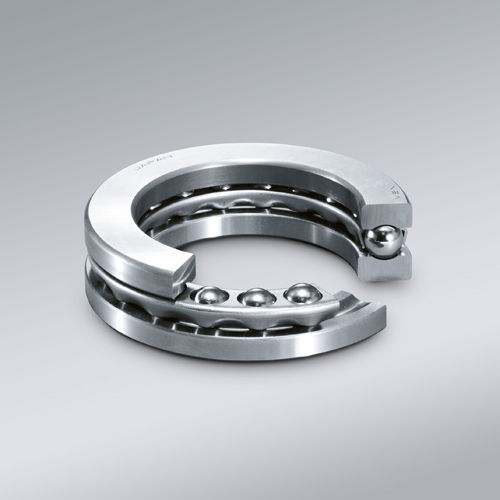

Thrust ball bearings, single direction 51320
SKU:BEA000501
Thrust ball bearings, single direction 51320
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
170 mm
|
|
| H |
55 mm
|
|
| d1 |
≈ 170 mm
|
|
| D1 |
≈ 103 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 142 mm
|
|
|---|---|---|
| Da |
max. 128 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
225 kN
|
|---|---|---|
| Basic static load rating | C0 |
570 kN
|
| Fatigue load limit | Pu |
18.3 kN
|
| Reference speed |
1 400 r/min
|
|
| Limiting speed |
1 900 r/min
|
|
| Minimum load factor | A |
1.9
|
MASS
| Mass bearing (including seat washer where applicable) |
4.95 kg
|
|---|
