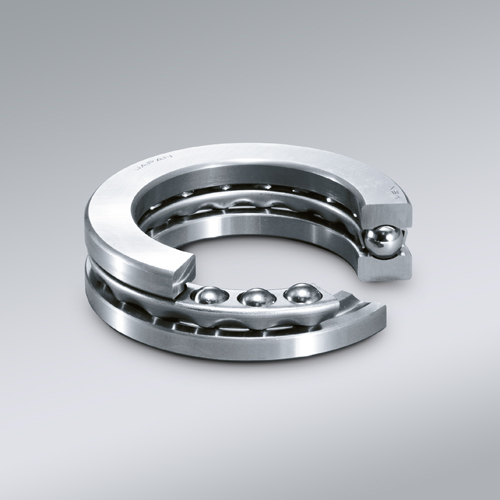

Thrust ball bearings, single direction 51405
SKU:THR000017
Thrust ball bearings, single direction 51405
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
60 mm
|
|
| H |
24 mm
|
|
| d1 |
≈ 60 mm
|
|
| D1 |
≈ 27 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 46 mm
|
|
|---|---|---|
| Da |
max. 39 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
42.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
67 kN
|
| Fatigue load limit | Pu |
2.45 kN
|
| Reference speed |
3 600 r/min
|
|
| Limiting speed |
5 000 r/min
|
|
| Minimum load factor | A |
0.048
|
MASS
| Mass bearing (including seat washer where applicable) |
0.34 kg
|
|---|
