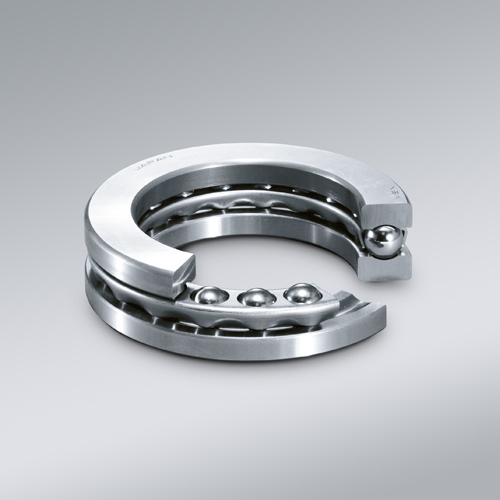

Thrust ball bearings, single direction 53317U
SKU:THR000013
Thrust ball bearings, single direction 53317U
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| d |
85 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| H |
53.1 mm
|
|
| H1 |
58 mm
|
|
| d1 |
≈ 150 mm
|
|
| D1 |
≈ 88 mm
|
|
| D2 |
115 mm
|
|
| D3 |
155 mm
|
|
| C |
17.5 mm
|
|
| R |
112 mm
|
|
| s |
43 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 124 mm
|
|
|---|---|---|
| Da |
max. 115 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
174 kN
|
|---|---|---|
| Basic static load rating | C0 |
405 kN
|
| Fatigue load limit | Pu |
14 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Minimum load factor | A |
1.1
|
MASS
| Mass bearing (including seat washer where applicable) |
4.35 kg
|
|---|
ASSOCIATED PRODUCTS
| Seat washer |
U 317
|
|---|
