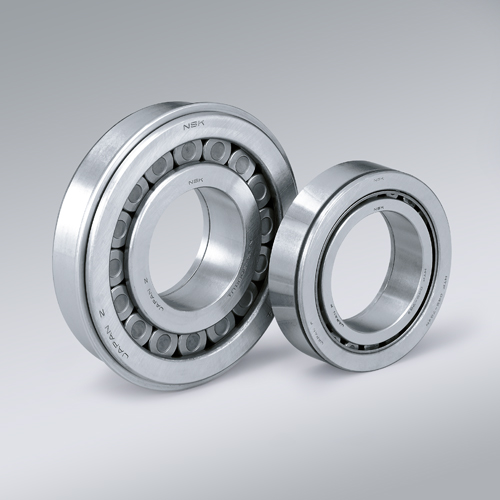

Cylindrical Roller Bearing NJ2238EMC3

Bearing number : NJ2238EM

Size (mm) : 190x340x92

Brand : NSK

Bore Diameter (mm) : 190

Outer Diameter (mm) : 340

Width (mm) : 92

Bearing dimensions and specification in NSK catalogue:

d - 190 mm

Fw - 228 mm

D - 340 mm

B - 92 mm

C - 92 mm

r min. - 4 mm

r1 min. - 4 mm

da min. - 206 mm

Da max. - 324 mm

db max. - 223 mm

db min - 206 mm

ra max. - 3 mm

rb max. - 3 mm

S - 1,7 mm

Db max - 324 mm

Weight - 38,3 Kg
