Description
SPECIFICATION
| Manufacturer Product Code | NP 45 |
|---|---|

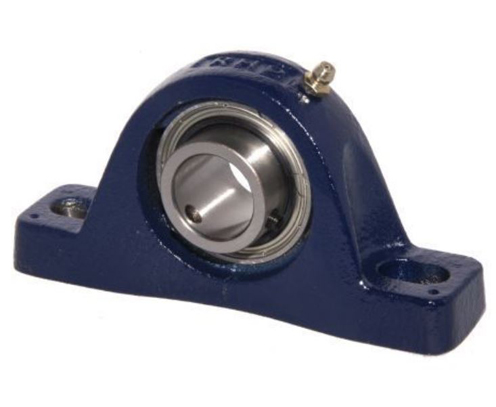

| Basic Product Description | Self Lube Pillow Block Unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 45 |
| Width (mm) | 54 |
| Length (mm) | 190.5 |
| Weight (Kg) | 2.8 |
| Ex-1 Seals | Standard seals |
| Ex-2 Features 1 | Spherical outside diameter |
| Ex-3 Features 2 | Set screw locking |
| In-1 Bolt Hole Centres (mm) | 154.5 / 140.5 |
| Ma-2 Bearing Material | Bearing steel |
| Ma-3 Housing Material | Cast iron |
| Co-2 Bearing/Insert | 1045-45G |
| Co-3 Housing | NP7CAS |
| Te-2 Dynamic load | 32500 |
| Te-3 Static load | 20500 |
| Te-4 Max Speed | 3700 |
