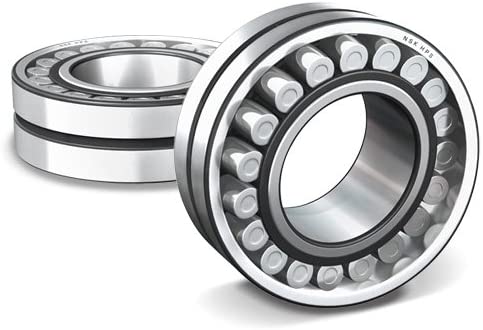

Spherical Roller Bearing 23176CAMKE4C3S11
SKU:BEA000518
Spherical Roller Bearing 23176CAMKE4C3S11
Manufacturer : NSK
Description
SPECIFICATION
| Manufacturer Product Code | 23176 CAMKE4C3 |
|---|---|
| Basic Product Description | Spherical Roller Bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 380 |
| od (mm) | 620 |
| Width (mm) | 194 |
| Weight (Kg) | 230 |
| Ex-1 Seals | Open (No seal) |
| Ex-4 Bore Type | Tapered bore (1:12) |
| In-2 Clearance | C3 Clearance |
| In-3 Cage design | Machined brass |
| In-4 Contact Angle | Guide ring centered on the inner ring |
| In-5 Accuracy | PN Normal tolerance |
| Ma-1 Cage material | Brass cage |
