SRB 22218EAKE4C3
SKU:SPH000115

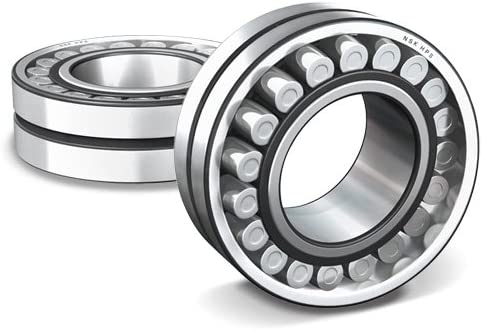

This 22218EAKE4C3 bearing is a Spherical Roller Bearing with high capacity steel cage, a 1:12 tapered bore, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 90x160x40.
Manufacturer : NSK
Description
| 222 | 18 | EA | K | E4 | C3 |
|---|---|---|---|---|---|
| Medium | 90mm - Bore Size | High Capacity Steel Cage | 1:12 Tapered Bore | Groove & Holes, Outer | Internal Clearance Greater Than Normal |
Technical Data
INSIDE DIAMETER (MM):90MM
OUTSIDE DIAMETER (MM):160MM
WIDTH (MM):40MM
CAGE TYPE:STEEL
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):289
STATIC LOAD RATING (KN):395
GREASE LIMITING SPEED (R/MIN):2800
OIL LIMITING SPEED (R/MIN):3600
