SRB 22219EAKE4C3
SKU:BRG000139

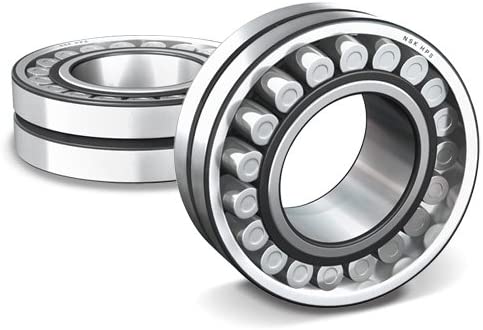

This 22219EAKE4C3 bearing is a Spherical Roller Bearing with high capacity steel cage, a 1:12 tapered bore, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 95x170x43.
Manufacturer : NSK
Description
| 222 | 19 | EA | K | E4 | C3 |
|---|---|---|---|---|---|
| Medium | 95mm - Bore Size | High Capacity Steel Cage | 1:12 Tapered Bore | Groove & Holes, Outer | Internal Clearance Greater Than Normal |
Technical Data
INSIDE DIAMETER (MM):95MM
OUTSIDE DIAMETER (MM):170MM
WIDTH (MM):43MM
CAGE TYPE:STEEL
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):330
STATIC LOAD RATING (KN):450
GREASE LIMITING SPEED (R/MIN):2600
OIL LIMITING SPEED (R/MIN):3400
