SRB 22220CAME4C3S11 HPS
SKU:BRG000519

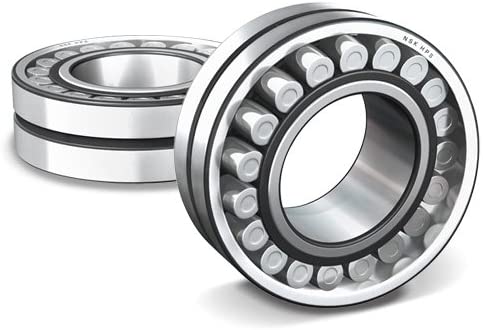

This 22220CAME4C3S11 HPS bearing is a Spherical Roller Bearing with high capacity steel cage, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 100x180x46mm.
Manufacturer : NSK
Description
| 222 | 20 | CAM | E4 | C3 |
|---|---|---|---|---|
| Medium Series | 100mm - Bore Size | One Piece Brass Cage, Guide Ring | Lubrication Groove with Holes on Outer Ring | Internal Clearance Greater than Normal |
Technical Data
INSIDE DIAMETER (MM):100MM
OUTSIDE DIAMETER (MM):180MM
WIDTH (MM):46MM
CAGE TYPE:BRASS
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):455
STATIC LOAD RATING (KN):490
REFERENCE SPEED RATING (R/MIN):4300
LIMITING SPEED RATING (R/MIN):3600
