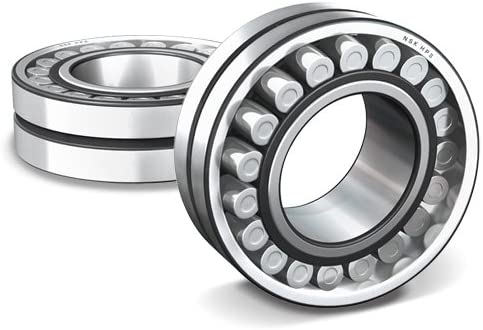

SRB 22220EAE4C3
SKU:BRG000520
This 22220EAE4C3 bearing is a Spherical Roller Bearing with high capacity steel cage, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 100x180x46.
Manufacturer : NSK
Description
| 222 | 20 | EA | E4 | C3 | |
|---|---|---|---|---|---|
| Medium | 100mm - Bore Size | High Capacity Steel Cage | Cylindrical Bore | Groove & Holes, Outer | Internal Clearance Greater Than Normal |
Technical Data
INSIDE DIAMETER (MM):100MM
OUTSIDE DIAMETER (MM):180MM
WIDTH (MM):46MM
CAGE TYPE:STEEL
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):365
STATIC LOAD RATING (KN):490
GREASE LIMITING SPEED (R/MIN):2400
OIL LIMITING SPEED (R/MIN):3200
