SRB 22222EAE4C3 HPS
SKU:SPH000117

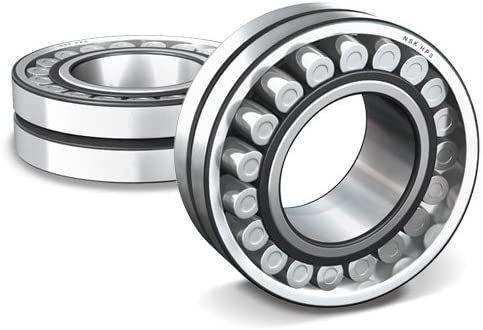

This 22222EAE4C3 bearing is a Spherical Roller Bearing with high capacity steel cage, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 110x200x53.
Manufacturer : NSK
Description
| 222 | 22 | EA | E4 | C3 | |
|---|---|---|---|---|---|
| Medium | 110mm - Bore Size | High Capacity Steel Cage | Cylindrical Bore | Groove & Holes, Outer | Internal Clearance Greater Than Normal |
Technical Data
INSIDE DIAMETER (MM):110MM
OUTSIDE DIAMETER (MM):200MM
WIDTH (MM):53MM
CAGE TYPE:STEEL
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):485
STATIC LOAD RATING (KN):645
GREASE LIMITING SPEED (R/MIN):2200
OIL LIMITING SPEED (R/MIN):2800
