SRB 22224EAE4C3
SKU:SPH000119

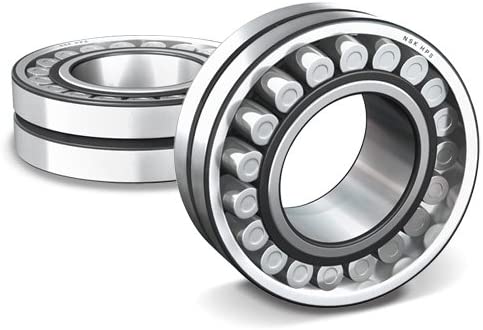

This 22224EAE4C3 bearing is a Spherical Roller Bearing with high capacity steel cage, an annular groove in the outer ring with three lubrication holes and a greater than standard radial internal clearance. The bearing's dimensions are 120x215x58.
Manufacturer : NSK
Description
| 222 | 24 | EA | E4 | C3 | |
|---|---|---|---|---|---|
| Medium | 120mm - Bore Size | High Capacity Steel Cage | Cylindrical Bore | Groove & Holes, Outer | Internal Clearance Greater Than Normal |
Technical Data
INSIDE DIAMETER (MM):120MM
OUTSIDE DIAMETER (MM):215MM
WIDTH (MM):58MM
CAGE TYPE:STEEL
SEALS OR SHIELDS:OPEN TYPE
CLEARANCE:C3
DYNAMIC LOAD RATING (KN):550
STATIC LOAD RATING (KN):765
GREASE LIMITING SPEED (R/MIN):2000
OIL LIMITING SPEED (R/MIN):2600
