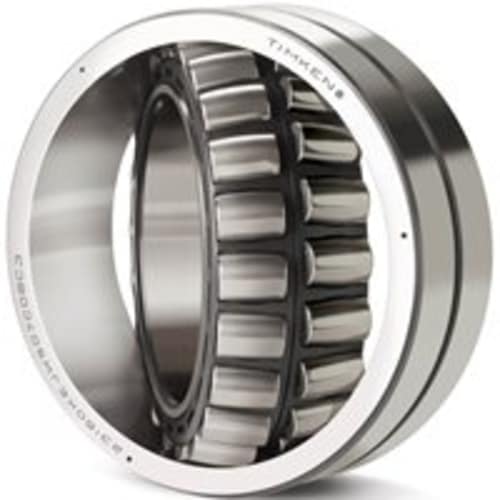

Spherical roller bearing 21310KEJW33C3
SKU:SRB000066
Spherical roller bearing 21310KEJW33C3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 50.000 |
| Bore Diameter (inch) | 1.9685 |
| Outside Diameter (inch) | 4.3307 |
| Outside Diameter (mm) | 110.000 |
| Width (mm) | 27.000 |
| Width (inch) | 1.0630 |
| Max Shaft/Housing Fillet Radius (mm) | 2 |
| Max Shaft/Housing Fillet Radius (inch) | 0.08 |
| Dynamic Load Rating C (lbs) | 36700 |
| Dynamic Load Rating C (kN) | 163 |
| Static Load Rating Co (kN) | 151 |
| Static Load Rating Co (lbs) | 33800 |
| Cage | Steel Cage |
| Radial internal clearance | C3 |
| Type | Tapered Bore |
| Unit system | Metric |
| Special Features | W33 - Outer ring with standard lubrication holes and machined lubrication groove in center of O.D. |
| Weight | 1.191kg |
