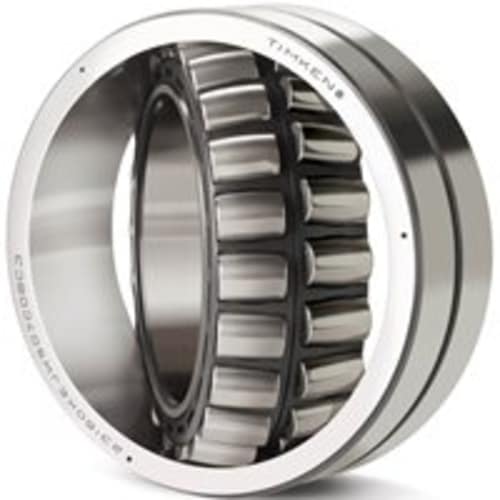

Spherical roller bearing 21311KEJW33C3
SKU:BEA001566
Spherical roller bearing 21311KEJW33C3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 55.000 |
| Bore Diameter (inch) | 2.1654 |
| Outside Diameter (inch) | 4.7244 |
| Outside Diameter (mm) | 120.000 |
| Width (mm) | 29.000 |
| Width (inch) | 1.1417 |
| Max Shaft/Housing Fillet Radius (mm) | 2 |
| Max Shaft/Housing Fillet Radius (inch) | 0.08 |
| Dynamic Load Rating C (lbs) | 42400 |
| Dynamic Load Rating C (kN) | 188 |
| Static Load Rating Co (kN) | 176 |
| Static Load Rating Co (lbs) | 39500 |
| Cage | Steel Cage |
| Radial internal clearance | C3 |
| Type | Tapered Bore |
| Unit system | Metric |
| Special Features | W33 - Outer ring with standard lubrication holes and machined lubrication groove in center of O.D. |
| Weight | 1.513kg |
