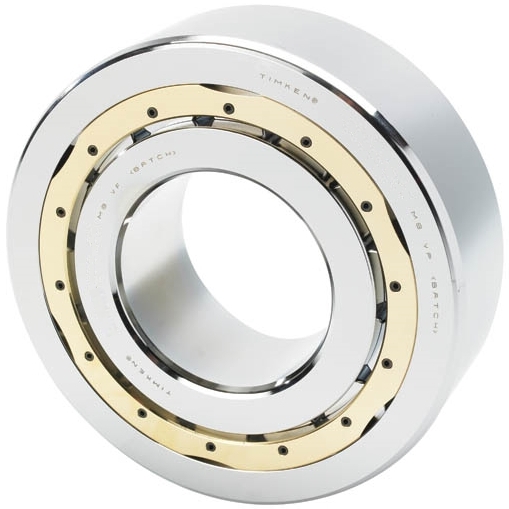

Cylindrical Roller Bearing NJ324EMAC3
SKU:CYL000187
Cylindrical Roller Bearing NJ324EMAC3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 120 |
| Bore Diameter (inch) | 4.7244 |
| Outside Diameter (inch) | 10.2362 |
| Outside Diameter (mm) | 260 |
| Width (mm) | 55 |
| Width (inch) | 2.1654 |
| rs min (mm) | 3 |
| rs min (inch) | 0.12 |
| r1s min (inch) | 0.12 |
| r1s min (mm) | 3 |
| Dynamic Load Rating C1 (kN) | 594 |
| Dynamic Load Rating C1 (lbs) | 134000 |
| Static Load Rating Co (kN) | 614 |
| Static Load Rating Co (lbs) | 138000 |
| F (mm) | 154 |
| F (inch) | 6.063 |
| ds (mm) | 147 |
| ds (inch) | 5.79 |
| Ds (mm) | 230 |
| Ds (inch) | 9.06 |
| Cage | Single-piece, land-riding, machined brass cage |
| Radial internal clearance | C3 |
| Unit system | Metric |
WEIGHT 14.904KG
