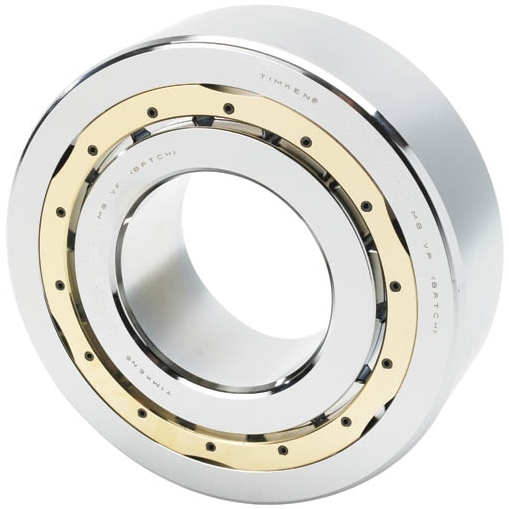

Cylindrical Roller Bearing NU2220EMAC3
SKU:CYL000014
Cylindrical Roller Bearing NU2220EMAC3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 100 |
| Bore Diameter (inch) | 3.937 |
| Outside Diameter (inch) | 7.0866 |
| Outside Diameter (mm) | 180 |
| Width (mm) | 46 |
| Width (inch) | 1.811 |
| rs min (mm) | 2.1 |
| rs min (inch) | 0.08 |
| r1s min (inch) | 0.08 |
| r1s min (mm) | 2.1 |
| Dynamic Load Rating C1 (kN) | 377 |
| Dynamic Load Rating C1 (lbs) | 84800 |
| Static Load Rating Co (kN) | 451 |
| Static Load Rating Co (lbs) | 101000 |
| F (mm) | 119 |
| F (inch) | 4.685 |
| ds (mm) | 115 |
| ds (inch) | 4.53 |
| Ds (mm) | 163 |
| Ds (inch) | 6.42 |
| Cage | Single-piece, land-riding, machined brass cage |
| Radial internal clearance | C3 |
| Unit system | Metric |
WEIGHT 5.164KG
