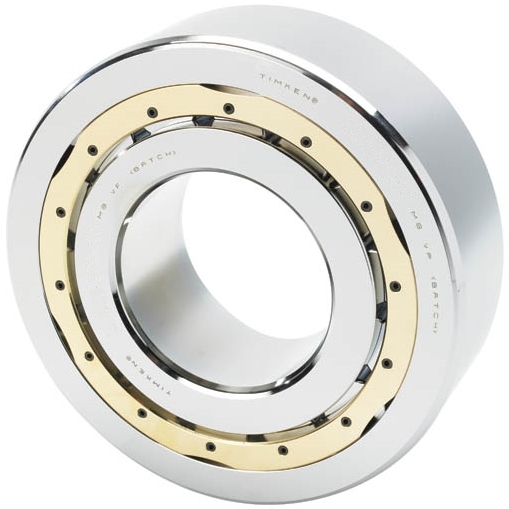

Cylindrical Roller Bearing NU224EMAC3
SKU:CYL000023
Cylindrical Roller Bearing NU224EMAC3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 120 |
| Bore Diameter (inch) | 4.7244 |
| Outside Diameter (inch) | 8.4646 |
| Outside Diameter (mm) | 215 |
| Width (mm) | 40 |
| Width (inch) | 1.5748 |
| rs min (mm) | 2.1 |
| rs min (inch) | 0.08 |
| r1s min (inch) | 0.08 |
| r1s min (mm) | 2.1 |
| Dynamic Load Rating C1 (kN) | 379 |
| Dynamic Load Rating C1 (lbs) | 85300 |
| Static Load Rating Co (kN) | 431 |
| Static Load Rating Co (lbs) | 97000 |
| F (mm) | 143.5 |
| F (inch) | 5.6496 |
| ds (mm) | 138 |
| ds (inch) | 5.43 |
| Ds (mm) | 195.5 |
| Ds (inch) | 7.7 |
| Cage | Single-piece, land-riding, machined brass cage |
| Radial internal clearance | C3 |
| Unit system | Metric |
WEIGHT 6.487KG
