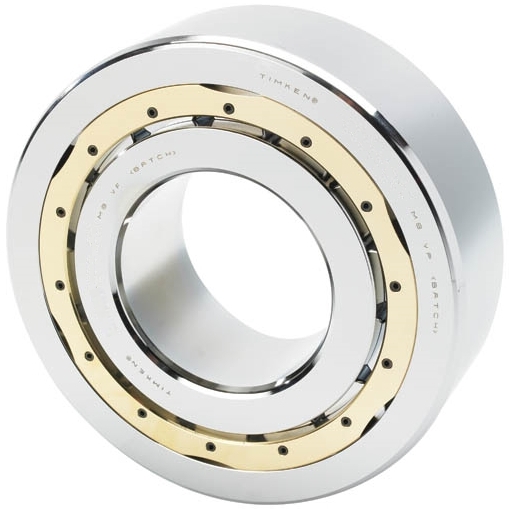

Cylindrical Roller Bearing NU316EMAC3
SKU:BEA000497
Cylindrical Roller Bearing NU316EMAC3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 80 |
| Bore Diameter (inch) | 3.1496 |
| Outside Diameter (inch) | 6.6929 |
| Outside Diameter (mm) | 170 |
| Width (mm) | 39 |
| Width (inch) | 1.5354 |
| rs min (mm) | 2.1 |
| rs min (inch) | 0.08 |
| r1s min (inch) | 0.08 |
| r1s min (mm) | 2.1 |
| Dynamic Load Rating C1 (kN) | 290 |
| Dynamic Load Rating C1 (lbs) | 65300 |
| Static Load Rating Co (kN) | 289 |
| Static Load Rating Co (lbs) | 64900 |
| F (mm) | 101 |
| F (inch) | 3.9764 |
| ds (mm) | 96.5 |
| ds (inch) | 3.8 |
| Ds (mm) | 151 |
| Ds (inch) | 5.94 |
| Cage | Single-piece, land-riding, machined brass cage |
| Radial internal clearance | C3 |
| Unit system | Metric |
WEIGHT 4.304KG
