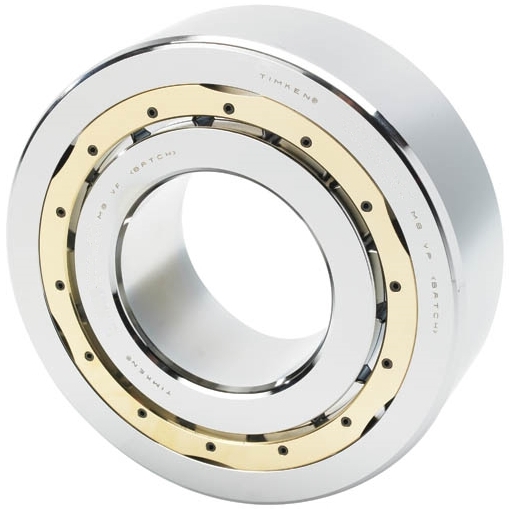

Cylindrical Roller Bearing NU317EMAC3
SKU:CYL000053
Cylindrical Roller Bearing NU317EMAC3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 85 |
| Bore Diameter (inch) | 3.3465 |
| Outside Diameter (inch) | 7.0866 |
| Outside Diameter (mm) | 180 |
| Width (mm) | 41 |
| Width (inch) | 1.6142 |
| rs min (mm) | 3 |
| rs min (inch) | 0.12 |
| r1s min (inch) | 0.12 |
| r1s min (mm) | 3 |
| Dynamic Load Rating C1 (kN) | 313 |
| Dynamic Load Rating C1 (lbs) | 70400 |
| Static Load Rating Co (kN) | 314 |
| Static Load Rating Co (lbs) | 70600 |
| F (mm) | 108 |
| F (inch) | 4.252 |
| ds (mm) | 103.6 |
| ds (inch) | 4.08 |
| Ds (mm) | 160 |
| Ds (inch) | 6.3 |
| Cage | Single-piece, land-riding, machined brass cage |
| Radial internal clearance | C3 |
| Unit system | Metric |
WEIGHT 5.028KG
