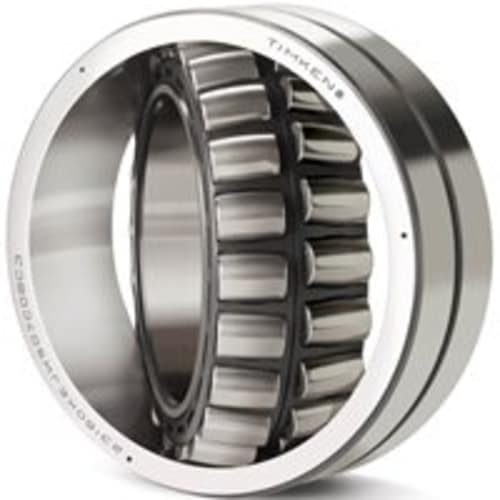

Spherical roller bearing 22211EJW33C3
SKU:BEA000217
Spherical roller bearing 22211EJW33C3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 55.000 |
| Bore Diameter (inch) | 2.1654 |
| Outside Diameter (inch) | 3.9370 |
| Outside Diameter (mm) | 100.000 |
| Width (mm) | 25.000 |
| Width (inch) | 0.9843 |
| Max Shaft/Housing Fillet Radius (mm) | 1.5 |
| Max Shaft/Housing Fillet Radius (inch) | 0.06 |
| Dynamic Load Rating C (lbs) | 31400 |
| Dynamic Load Rating C (kN) | 140 |
| Static Load Rating Co (kN) | 142 |
| Static Load Rating Co (lbs) | 31900 |
| Cage | Steel Cage |
| Radial internal clearance | C3 |
| Type | Straight Bore |
| Unit system | Metric |
| Special Features | W33 - Outer ring with standard lubrication holes and machined lubrication groove in center of O.D. |
| Weight(kg) | 0.815 |
