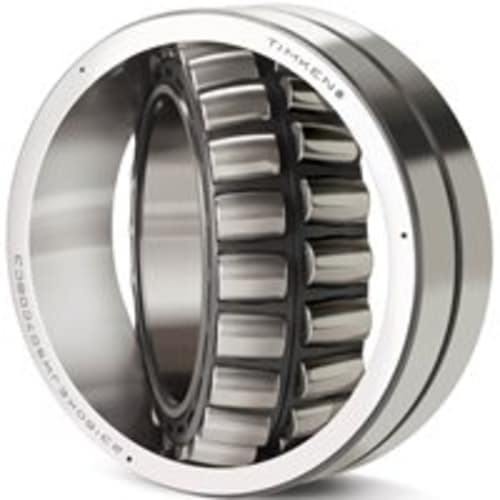

Spherical roller bearing 22212KEJW33C3
SKU:BEA000567
Spherical roller bearing 22212KEJW33C3
Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (mm) | 60.000 |
| Bore Diameter (inch) | 2.3622 |
| Outside Diameter (inch) | 4.3307 |
| Outside Diameter (mm) | 110.000 |
| Width (mm) | 28.000 |
| Width (inch) | 1.1024 |
| Max Shaft/Housing Fillet Radius (mm) | 1.5 |
| Max Shaft/Housing Fillet Radius (inch) | 0.06 |
| Dynamic Load Rating C (lbs) | 38100 |
| Dynamic Load Rating C (kN) | 169 |
| Static Load Rating Co (kN) | 174 |
| Static Load Rating Co (lbs) | 39000 |
| Cage | Steel Cage |
| Radial internal clearance | C3 |
| Type | Tapered Bore |
| Unit system | Metric |
| Special Features | W33 - Outer ring with standard lubrication holes and machined lubrication groove in center of O.D. |
| Weight(kg) | 1.101 |
