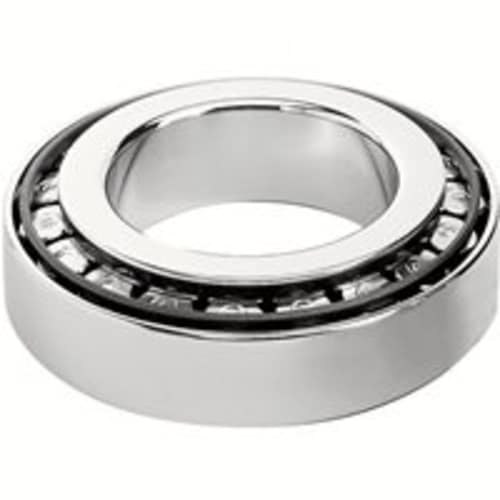

Manufacturer : Timken
Description
Product Attributes
 |
|
| Bore Diameter (inch) | 2.9528 |
| Bore Diameter (mm) | 75 |
| Outside Diameter (inch) | 5.1181 |
| Outside Diameter (mm) | 130 |
| Width T (inch) | 1.0728 |
| Width T (mm) | 27.25 |
| Inner Ring Width B (inch) | 0.9843 |
| Inner ring width B (mm) | 25 |
| Outer ring width C (mm) | 22 |
| Outer ring width C (inch) | 0.8661 |
| Max Shaft Fillet Radius R (mm) | 2 |
| Max Shaft Fillet Radius R (inch) | 0.08 |
| Max Housing Fillet Radius r (inch) | 0.06 |
| Max Housing Fillet Radius r (mm) | 1.5 |
| Dynamic Load Rating C1 (lbs) | 34200 |
| Dynamic Load Rating C1 (N) | 152000 |
| Static Load Rating Co (N) | 180000 |
| Static Load Rating Co (lbs) | 40400 |
| Factor K | 1.34 |
| Factor e | 0.44 |
| Factor Y | 1.38 |
| Precision Level | Class N (Standard) Tolerance |
| Unit system | Metric |
| Special Features | ISO 355 |
