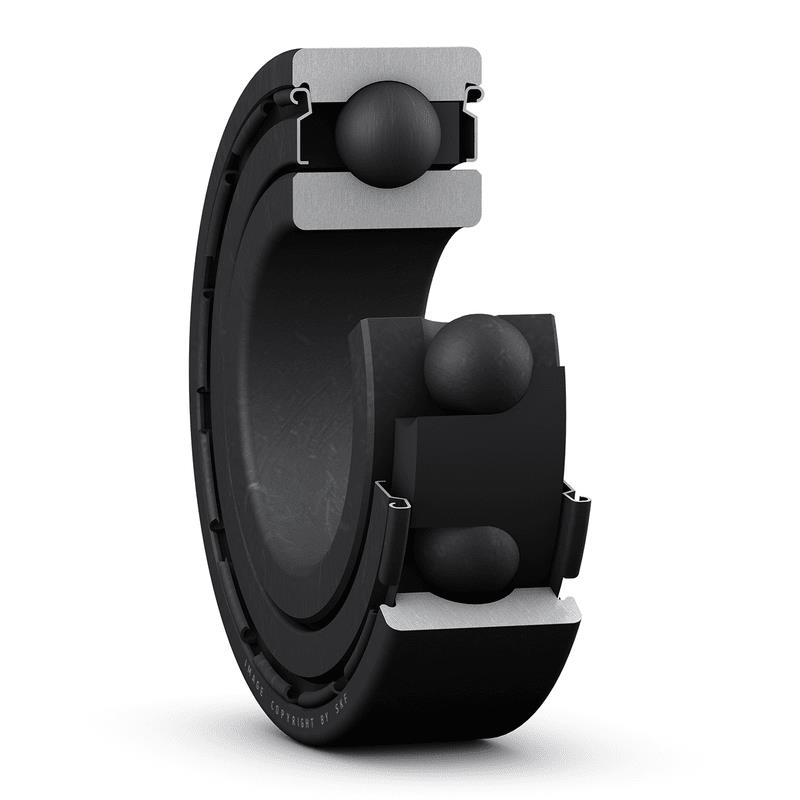

Deep groove ball bearings, single row, for high temperature applications 6005-2Z/VA208
SKU:DGB000004
Deep groove ball bearings, single row, for high temperature applications 6005-2Z/VA208
Manufacturer : SKF
Description
Technical specification
| Running in required |
No
|
|---|
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
47 mm
|
|
| B |
12 mm
|
|
| d1 |
≈ 32 mm
|
|
| D2 |
≈ 42.2 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 28.2 mm
|
|
|---|---|---|
| da |
max. 31.9 mm
|
|
| Da |
max. 43.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
11.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
6.55 kN
|
| Limiting speed |
120 r/min
|
|
| Limiting temperature | T |
max. 350 °C
|
MASS
| Mass bearing |
0.083 kg
|
|---|
