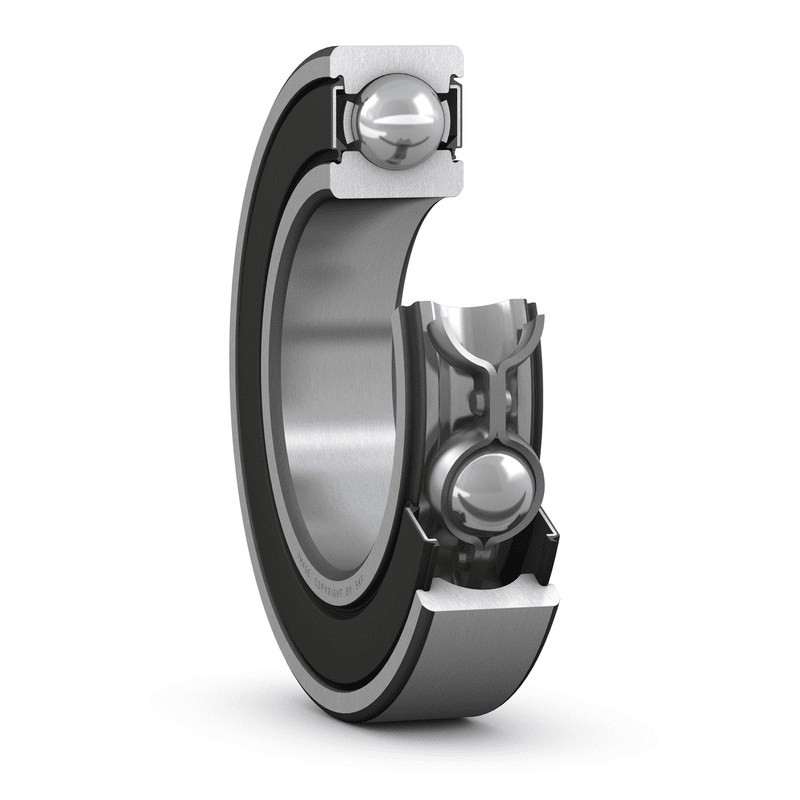

Deep groove ball bearings 6005-2RSH/C3
SKU:BEA001458
Deep groove ball bearings 6005-2RSH/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
47 mm
|
|
| B |
12 mm
|
|
| d2 |
≈ 29.45 mm
|
|
| D2 |
≈ 42.2 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 28.2 mm
|
|
|---|---|---|
| da |
max. 29.5 mm
|
|
| Da |
max. 43.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
11.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
6.55 kN
|
| Fatigue load limit | Pu |
0.275 kN
|
| Limiting speed |
9 500 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.3
|
MASS
| Mass bearing |
0.081 kg
|
|---|
