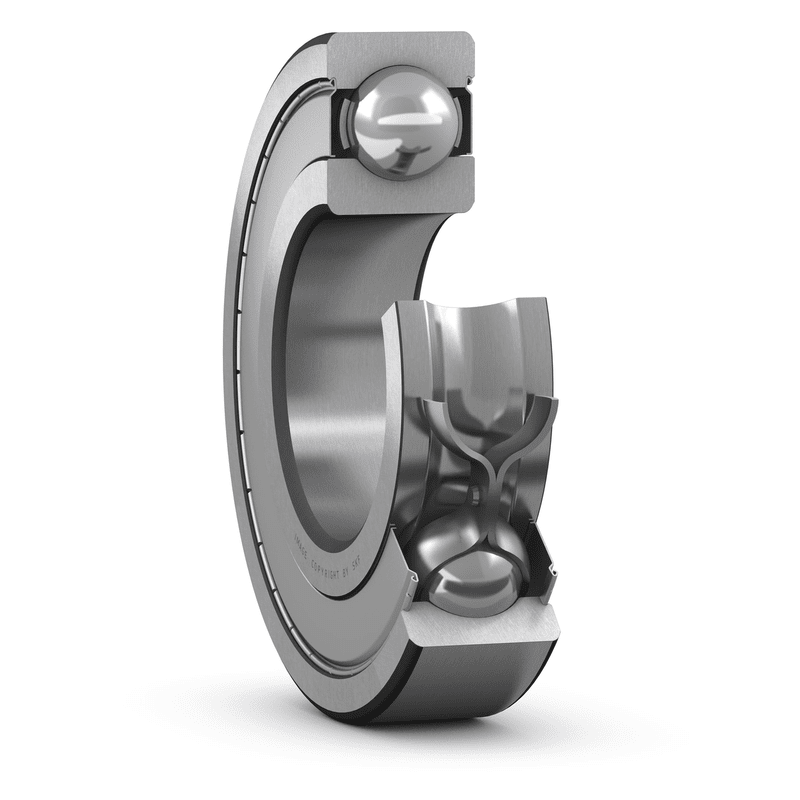

Deep groove ball bearings 6007-2Z/C3
SKU:BEA001111
Deep groove ball bearings 6007-2Z/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
14 mm
|
|
| d1 |
≈ 43.75 mm
|
|
| D2 |
≈ 55.61 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 39.6 mm
|
|
|---|---|---|
| da |
max. 43.7 mm
|
|
| Da |
max. 57.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
16.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
10.2 kN
|
| Fatigue load limit | Pu |
0.44 kN
|
| Reference speed |
24 000 r/min
|
|
| Limiting speed |
12 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
15
|
MASS
| Mass bearing |
0.16 kg
|
|---|
