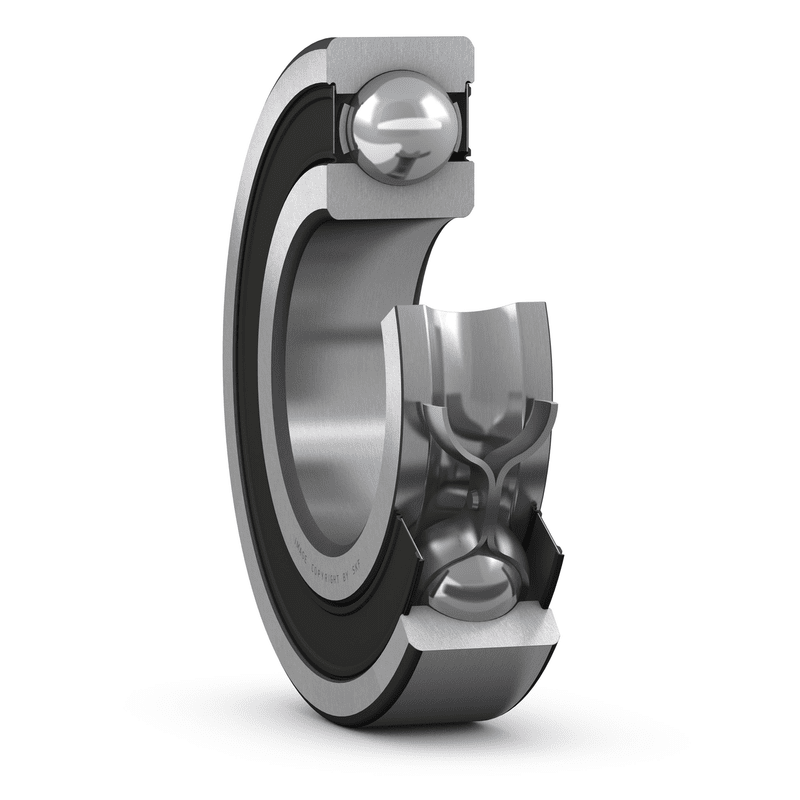

Deep groove ball bearings 6010-2RS1/C3
SKU:BEA000964
Deep groove ball bearings 6010-2RS1/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
80 mm
|
|
| B |
16 mm
|
|
| d1 |
≈ 59.75 mm
|
|
| D2 |
≈ 72.8 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 54.6 mm
|
|
|---|---|---|
| da |
max. 59.7 mm
|
|
| Da |
max. 75.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
22.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
15.6 kN
|
| Fatigue load limit | Pu |
0.71 kN
|
| Limiting speed |
5 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.7
|
MASS
| Mass bearing |
0.27 kg
|
|---|
