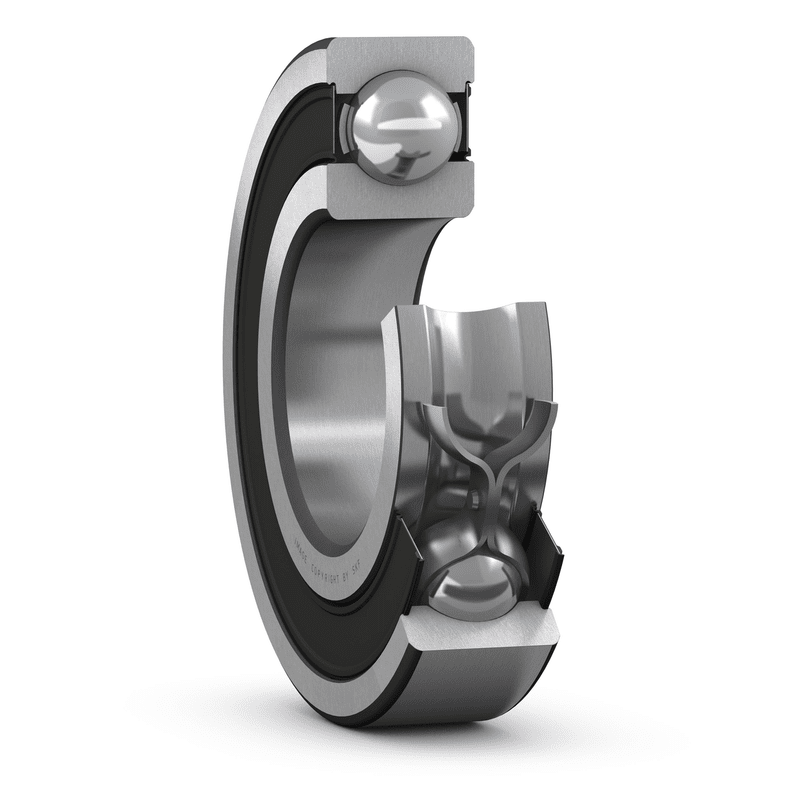

Deep groove ball bearings 6011-2RS1/C3
SKU:BEA001090
Deep groove ball bearings 6011-2RS1/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
55 mm
|
|
|---|---|---|
| D |
90 mm
|
|
| B |
18 mm
|
|
| d1 |
≈ 66.3 mm
|
|
| D2 |
≈ 81.5 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 61 mm
|
|
|---|---|---|
| da |
max. 66.2 mm
|
|
| Da |
max. 84 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
29.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
21.2 kN
|
| Fatigue load limit | Pu |
0.9 kN
|
| Limiting speed |
4 500 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
15.4
|
MASS
| Mass bearing |
0.4 kg
|
|---|
