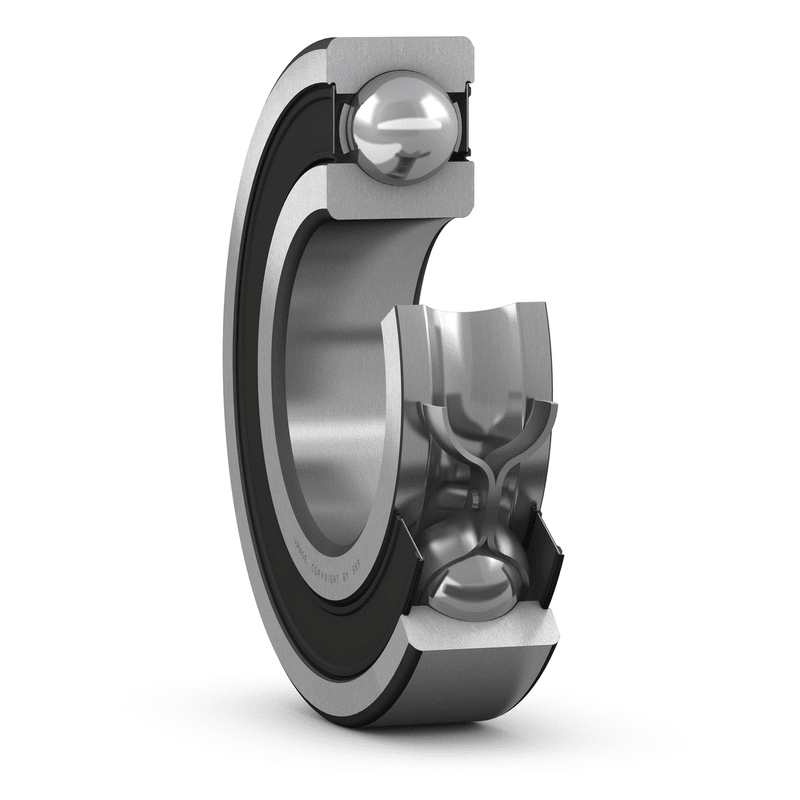

Deep groove ball bearings 6013-2RS1/C3
SKU:BRG000225
Deep groove ball bearings 6013-2RS1/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
100 mm
|
|
| B |
18 mm
|
|
| d1 |
≈ 76.3 mm
|
|
| D2 |
≈ 91.5 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 71 mm
|
|
|---|---|---|
| da |
max. 76.2 mm
|
|
| Da |
max. 94 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
31.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
25 kN
|
| Fatigue load limit | Pu |
1.06 kN
|
| Limiting speed |
4 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
15.8
|
MASS
| Mass bearing |
0.45 kg
|
|---|
